+AF300H.TT-17.BV-7_L_ALU

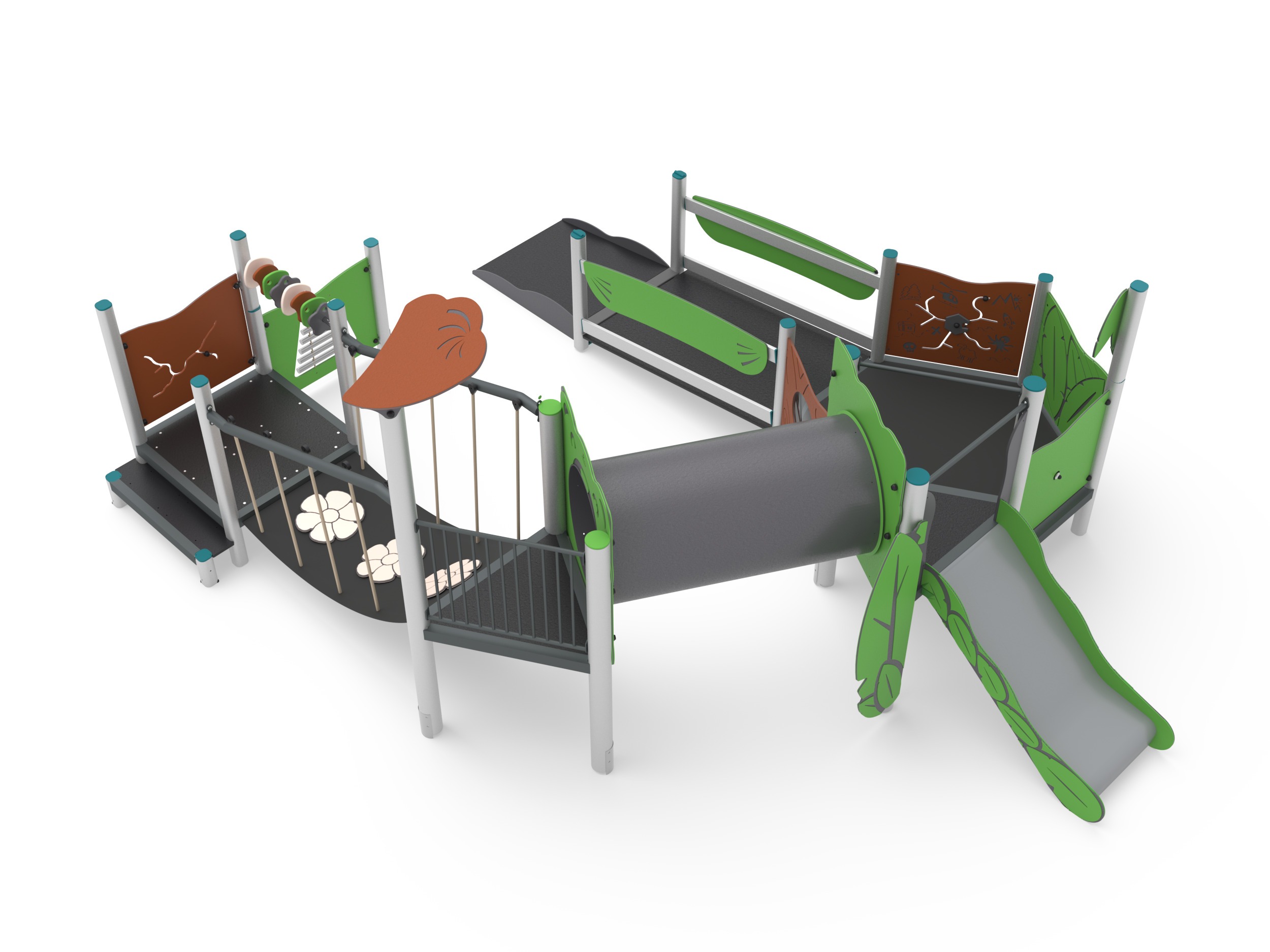

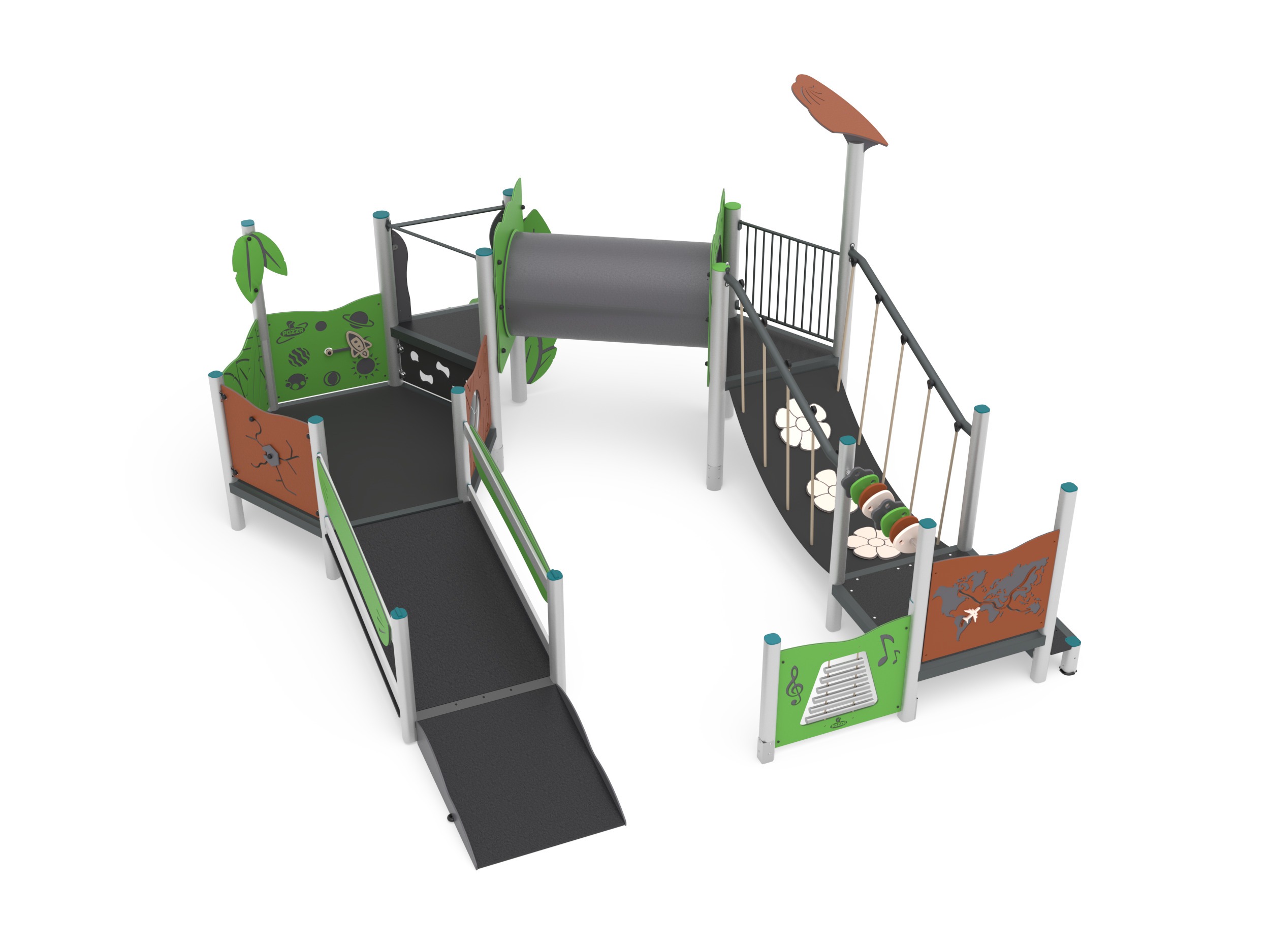

SATURNO WITH TUNNEL AND PANNELLO MUSICALE – LEAVES
.
DESCRIPTION
SATURNO WITH TUNNEL AND PANNELLO MUSICALE - LEAVES - . / +AF300H.TT-17.BV-7_L_ALU
- N. 1 NG Globe Panel Leaves - .
- N. 1 NG Helicopter Activity Panel Leaves - Made of colored polyethylene, sandwich type, with flow lanes, rotating disk and central knob
- N. 3 NG Leg 90x90 from 00 60 - .
- NR 1 NG Climbing h50 cm - Climbing between towers made of recycled material with resin climbing rocks
- NR 1 NG Hexagonal tower less roof - made of 6 aluminum beams, 1 hexagoal platform and mounted at 40 cm height
- N. 1 NG Large Leaf Accessory - Leaves panel
- N. 1 NG Small Leaf Accessory - Leaves panel
- N. 1 NG Green Simple Panel - Panel made of HDPE polyethilene, bi-color 86cm in width with drawing on the outer layer. all the fixing elements in Stainless steel
- NR 1 NG Inclined mobile bridge - Made of impregnated wood, with laminated wood beams oscillating hanging on to the handrail with steel ropes coated
- NR 1 NG Fantasy Railing - Fantasy railing in painted steel
- NR 1 NG Square tower h 40 cm (without roof) - Composed of 4 posts having a 9 x 9 cm section by aluminium, 1 square platform placed at a height of 40 cm
- NR 1 NG Inclusive staircase h40 cm - Inclusive stair h40 made of carply and aluminum
- N. 1 NG Poly-Inox Slide h90 Leaves - slide with lateral sides made of polyethylene and stainless steel slide certified according to the existing rules; starting platform height 90 cm; provided with a transversal bar.
- NR 1 NG Triangular tower without roof h 90cm: - Composed of 3 posts having a pentagonal section by lamellar wood, 1 square platform placed at a height of 90 cm.
TECHNICAL CHARACTERISTICS
| Impact area (mq): | 0 |
| Size (m): | 4,5 x 6 x 3 |

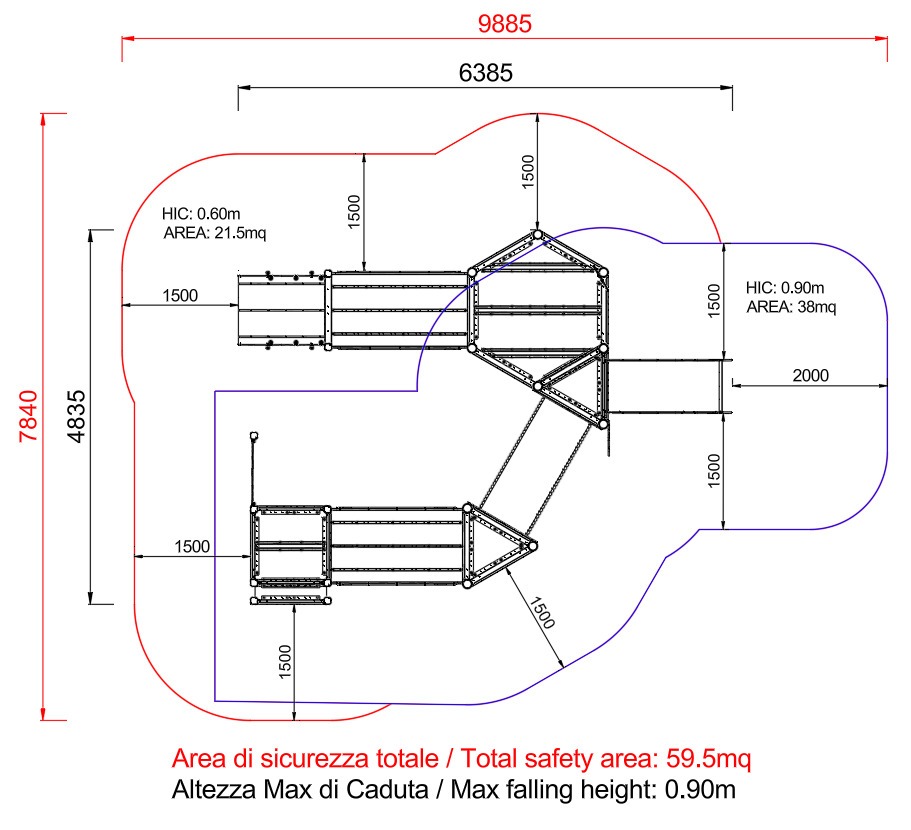

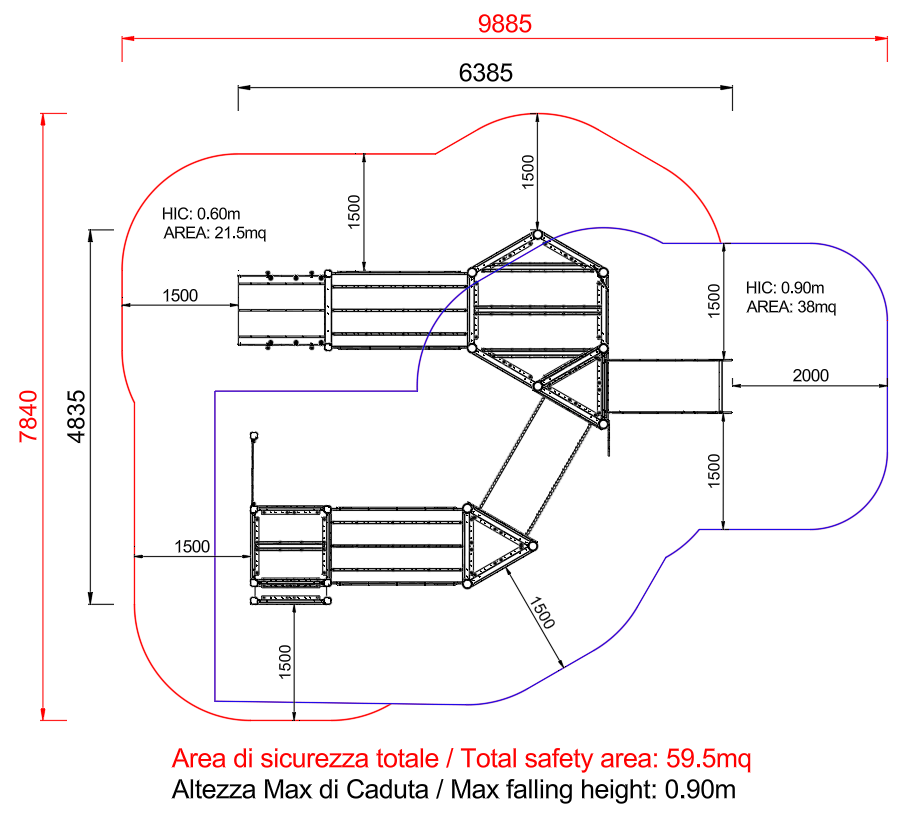

| Safety area (m): | 7,5 x 9,5 |
| Falling height (cm): | 90 |
