+AF104K.QT4-19_L_ALU

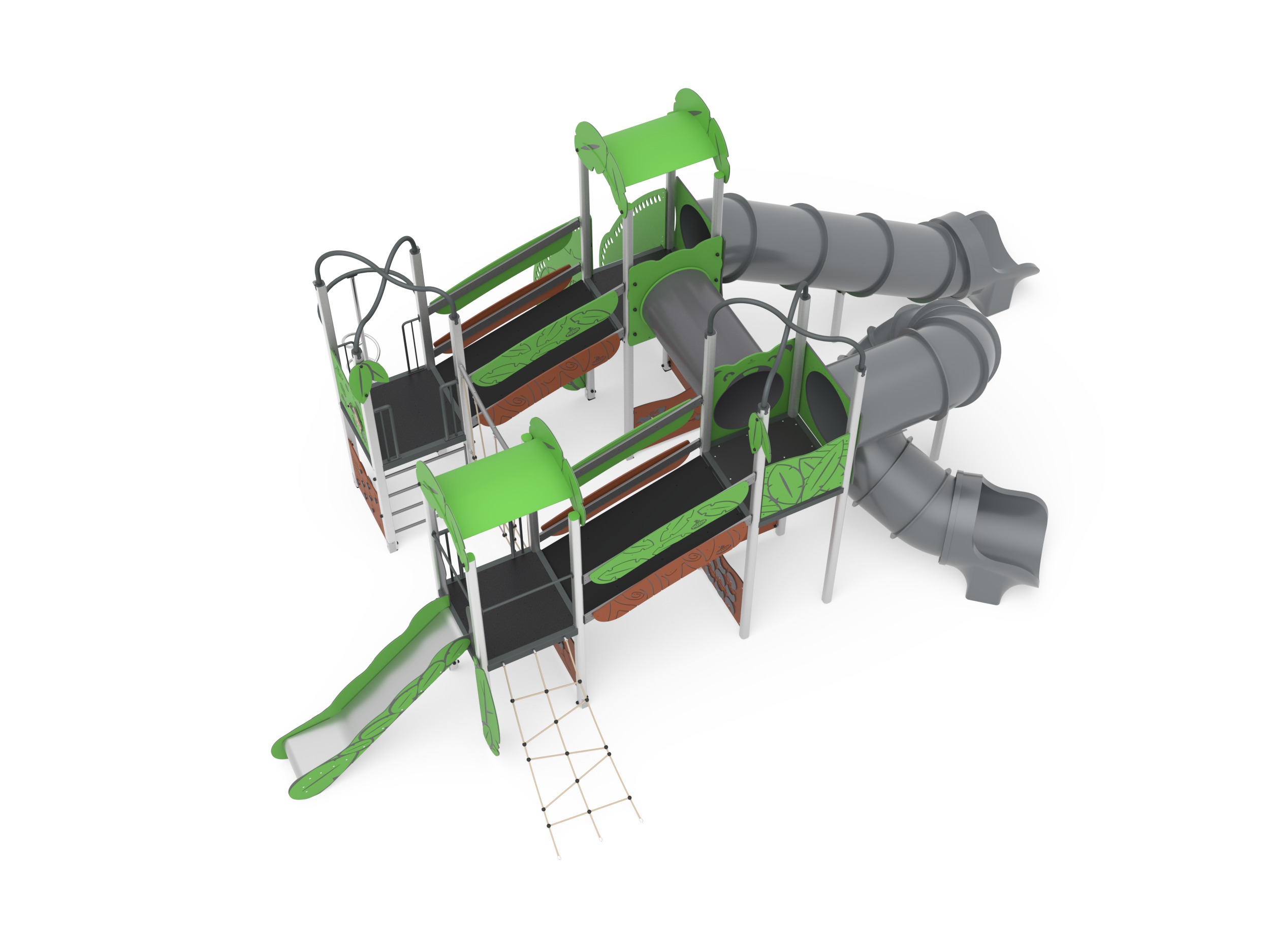

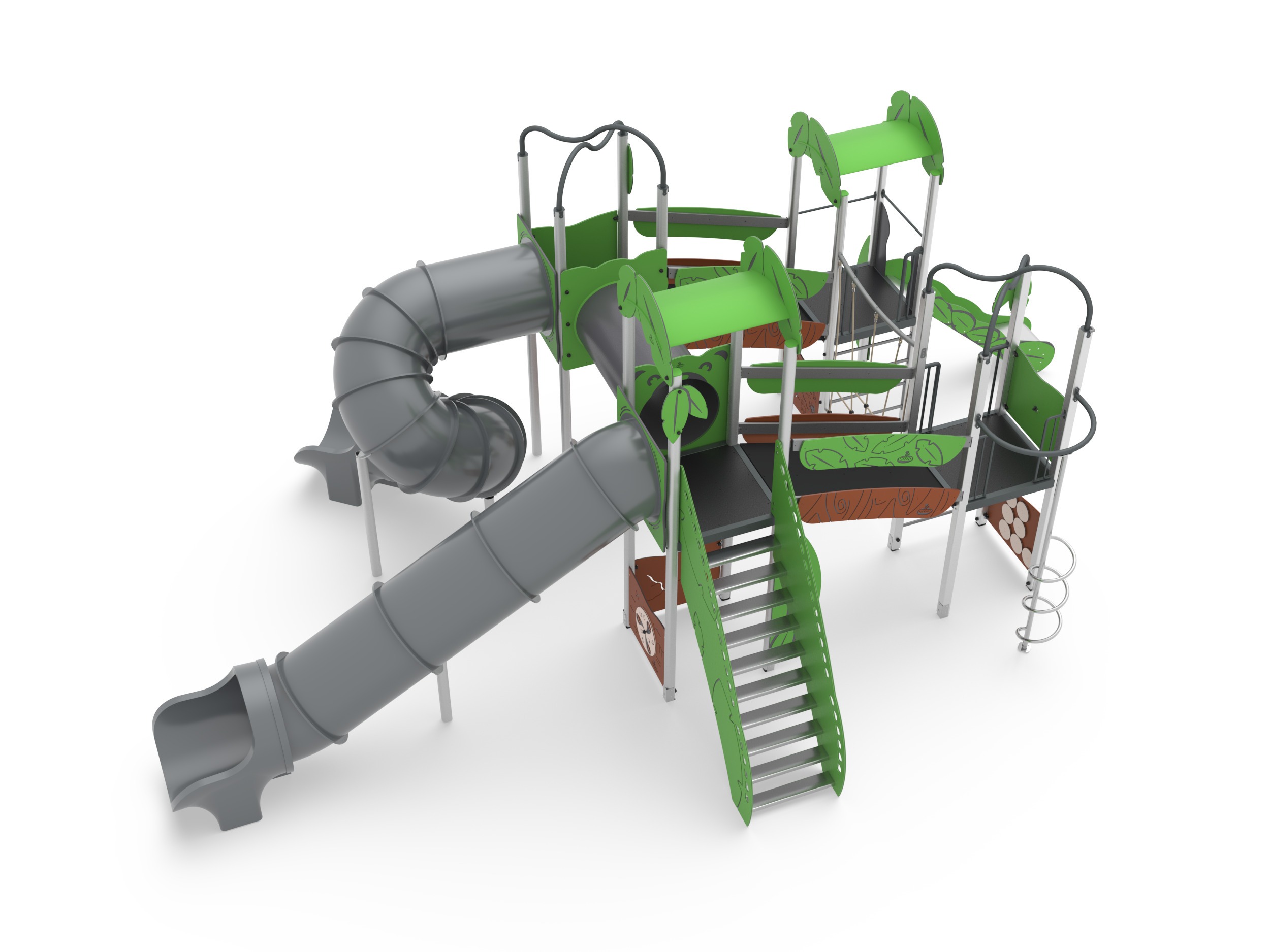

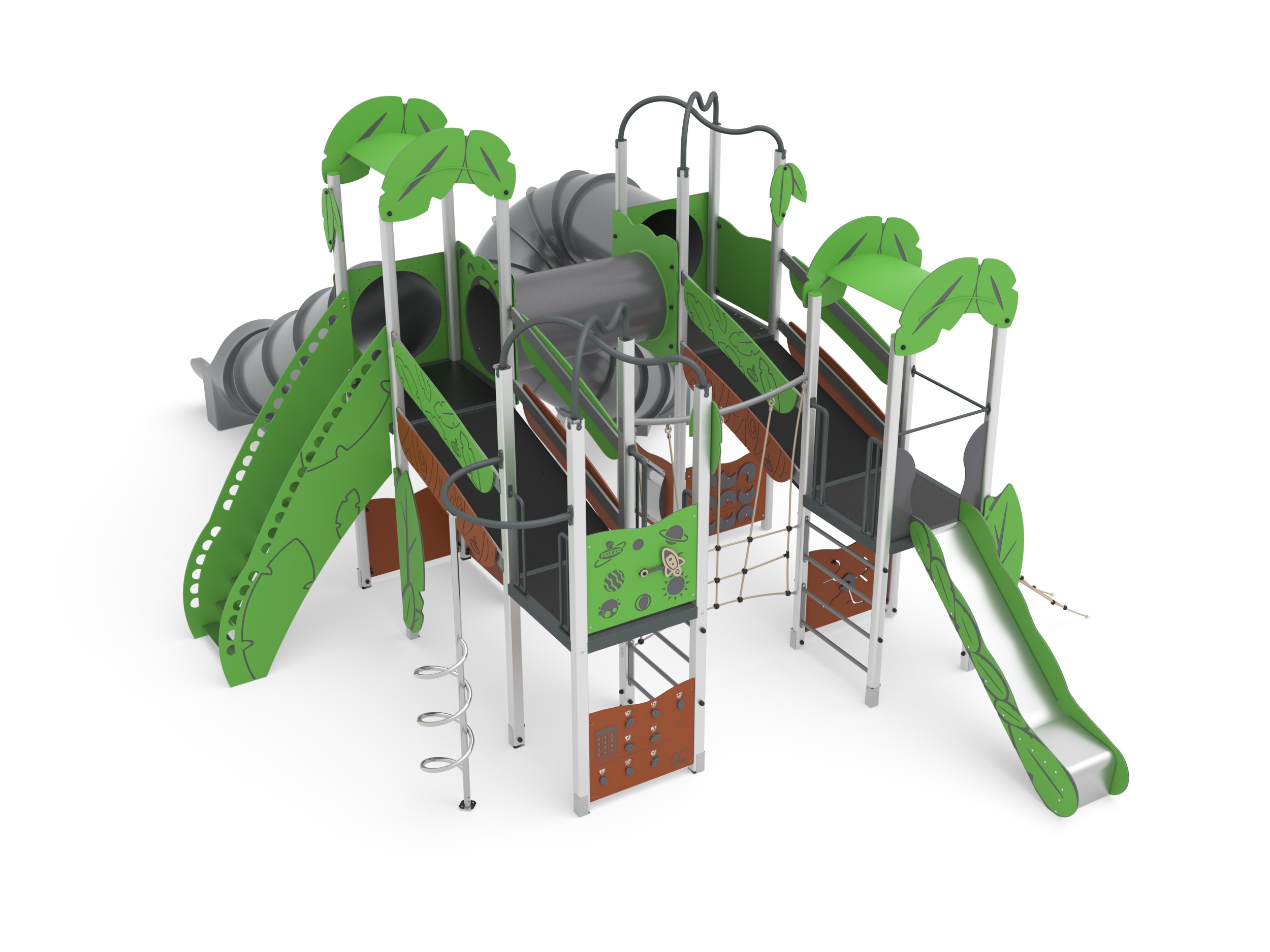

ROMA WITH TUBE SLIDE – LEAVES
NULL
DESCRIPTION
ROMA WITH TUBE SLIDE - LEAVES - NULL / +AF104K.QT4-19_L_ALU / Made of EN EV6060 anodized alumium 9x9cm custom mold with rounded edges, minimum thickness 2,7mm
- NR 2 NG Closing handles - Pair of stainless steel locking handles
- N. 1 NG Tic-Tac-Toe Panel Leaves - Two colored polyethylene panel with serigraphy XOX symbols, 9 half-moon rolling panels, Inox steel bolts.
- N. 1 NG Numbers Panel Leaves - .
- N. 1 NG Mirror Panel Leaves - .
- N. 1 NG Helicopter Activity Panel Leaves - Made of colored polyethylene, sandwich type, with flow lanes, rotating disk and central knob
- N. 1 NG Large Leaf Accessory - Leaves panel
- N. 1 NG Small Leaf Accessory - Leaves panel
- N. 1 NG Green Simple Panel - Panel made of HDPE polyethilene, bi-color 86cm in width with drawing on the outer layer. all the fixing elements in Stainless steel
- NR 2 NG Linear Gym-2 - Vertical net with frame made of lamellar wood beams fixed through disappearing and passing nuts and bolts Bars realized with stainless steel tubular pegs, mounted into two lateral wooden supports Climbing cord
- NR 4 NG Single Vertical Wall Bars - .
- NR 1 NG Spiral perch h 140 cm - Composed bystainless steel tubular, support bracket and locking handles in painted steel
- NR 1 NG Square tower h140 cm - .
- N. 1 NG Square tower h90 cm - .
- N. 1 NG Tower h140 with Roof Leaves - Composed by 4 posts having a 9 x 9 cm section by aluminium, 1 square platform placed at a height of 140 cm. Coloured polyethylene gable roof.
- NR 1 NG Shroud lift h140 cm - Composed by climbing net in steel rope. Included by thrust bar
- N. 1 NG Poly-Inox Slide h140 Leaves - slide with lateral sides made of polyethylene and stainless steel slide certified according to the existing rules; starting platform height 140 cm; provided with a transversal bar.
TECHNICAL CHARACTERISTICS
| Impact area (mq): | 69 |
| Size (m): | 9,9 x 6,6 x 4,2 |

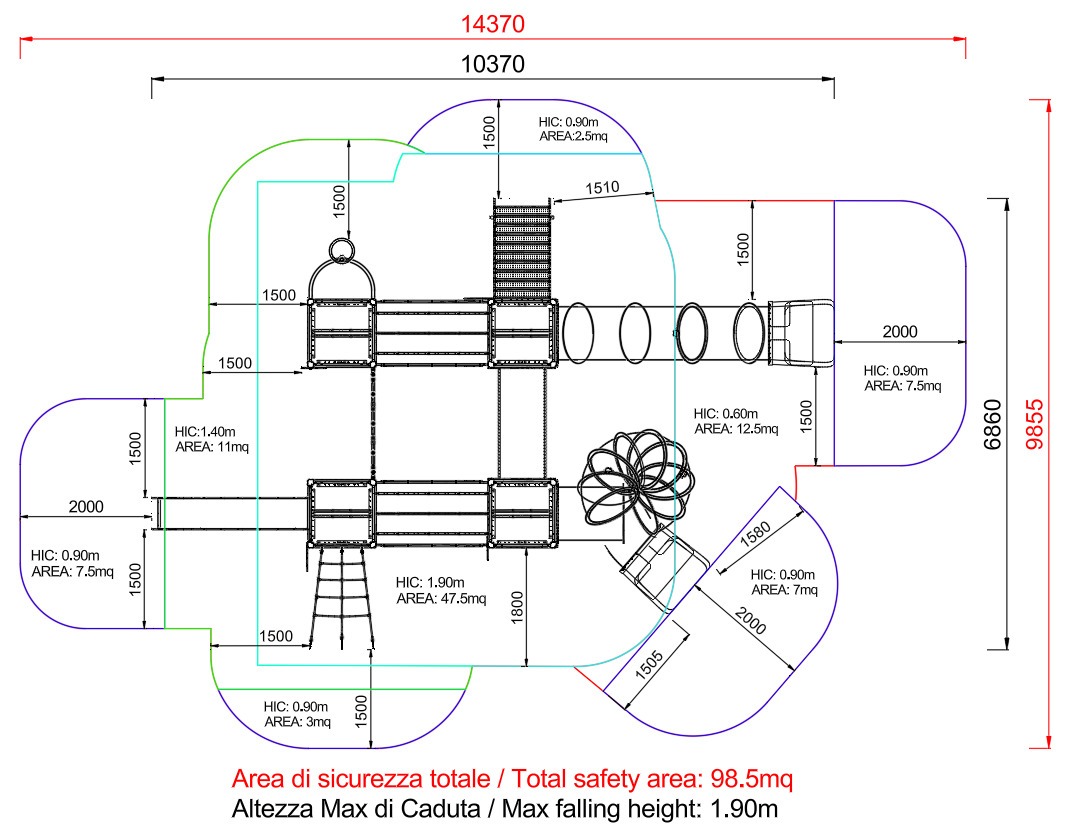

| Safety area (m): | 13,9 x 10,1 |
| Falling height (cm): | 190 |
MATERIALS OF CONSTRUCTION
PLAYING CHARACTERISTICS
