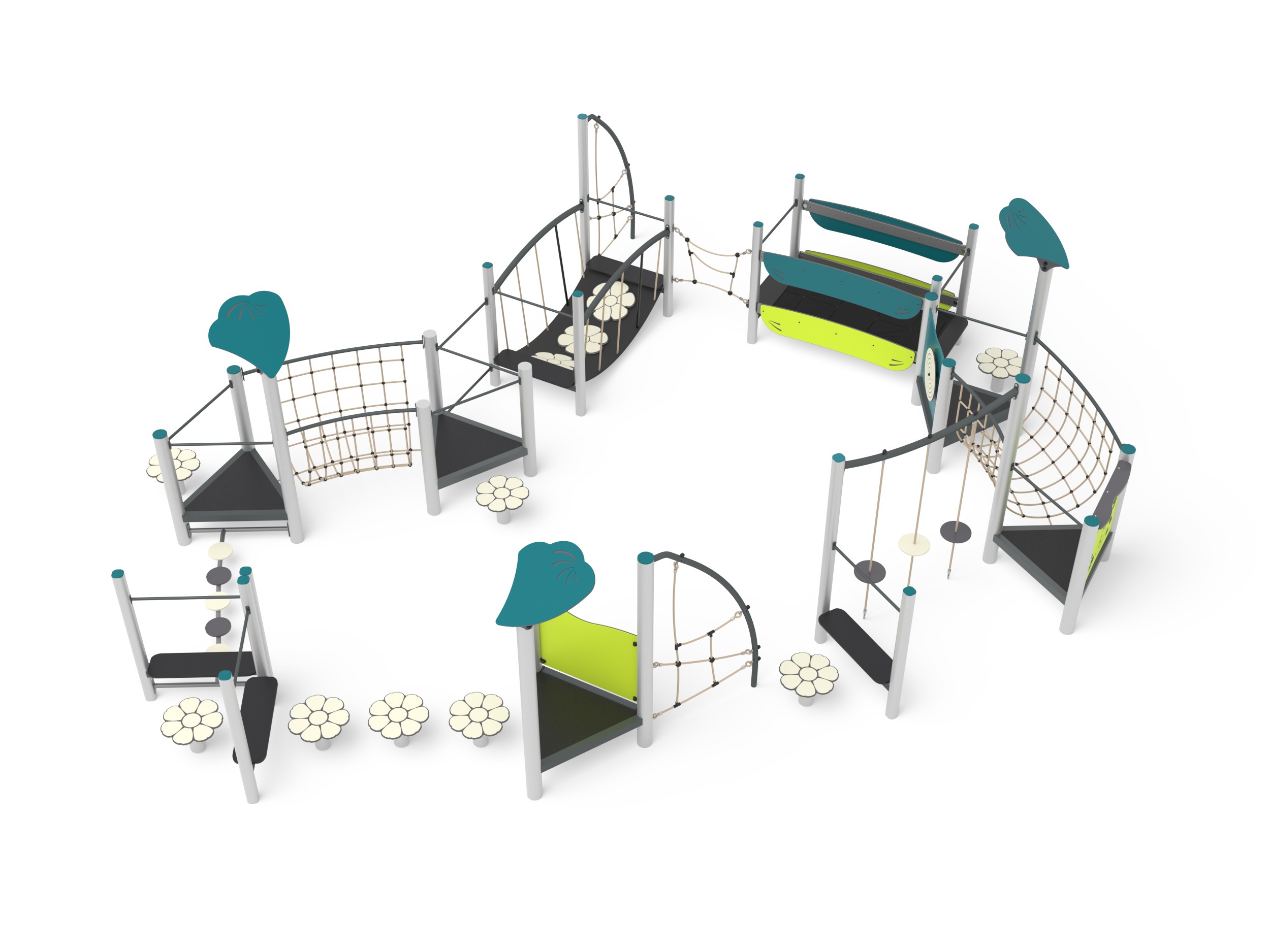

+U0100.PAL-01_ALU
PERCORSO EQUILIBRIO
MULTI-LEVEL STRUCTURE, TOWERS AND GYM
DESCRIPTION
PERCORSO EQUILIBRIO - MULTI-LEVEL STRUCTURE, TOWERS AND GYM / +U0100.PAL-01_ALU / Made of EN EV6060 anodized alumium 9x9cm custom mold with rounded edges, minimum thickness 2,7mm
- N. 1 NG Triangular tower without roof h 40cm: - Composed of 3 posts having a pentagonal section by lamellar wood, 1 square platform placed at a height of 40 cm.
- N. 2 NG Triangular tower without roof h 40cm: - Composed of 3 posts having a pentagonal section by lamellar wood, 1 square platform placed at a height of 40 cm.
- N. 5 NG Leg 90x90 from 00 60 - .
- NR 5 NG Leg 90x90 from 90 190 - .
- NR 2 NG Triangular platform, under tower - Made of non-slip material
- N. 2 NG Platform Joint for Square Posts - .
- N. 2 NG Curved Tibetan bridge - The net is made of steel strands rope, 18 mm diameter, covered with a colored nylon braid, highly resistant. The knots are covered with shell-shape protections
- N. 1 NG Right mobile bridge - Mobile bridge made of a painted steel frame with HDPE moving flowers as base and a rubber floor for safety
- NR 1 NG Fixed right bridge - Walkway made of impregnated wood, with plyethylene parapets
- N. 1 NG Rope bridge - .
- NR 2 NG Net gym - Vertical net with frame made of painted steel supporting a climbing net made of steel rope with nylon cover
- N. 1 NG Ground gym baby - GROUND GYM BABY
- NR 16 NG Fantasy holding bar - Fantasy steel holding bar L.860
- NR 8 NG Step Flower - Polyethilene flower supported by a galvanized steel bean
- NR 1 NG OPTICAL PANEL - OPTICAL EASY PANEL MADE OF POLYTHILENE
- N. 1 NG Simple Lime Panel - Panel made of HDPE polyethilene, bi-color 86cm in width with drawing on the outer layer. all the fixing elements in Stainless steel
- N. 1 NG Shop panels Fantasy - Vertical panel made of polyethylene and wood shelf.
- NR 3 NG Simple roof - HDPE Polyethilene roof with stainless steel fixing bracket
- NR 1 NG Baby Vertical Rope Ladder - .
TECHNICAL CHARACTERISTICS
| Impact area (mq): | 0 |
| Size (m): | 8,5 x 7,5 x 2,5 |

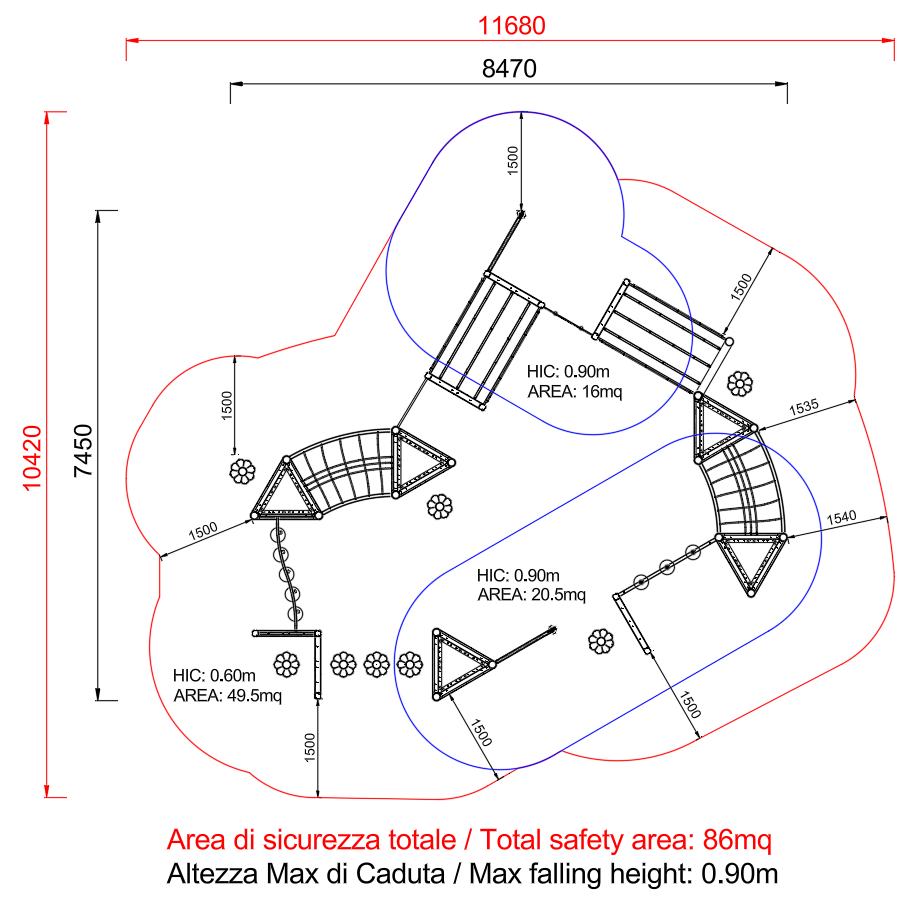

| Safety area (m): | 11,7 x 10,5 |
| Falling height (cm): | 90 |
