+AF102AP_L_ALU
MERLINO WITH SWING AND GYM – LEAVES
DOUBLE TOWER STRUCTURE WITH GYM AND SWING
DESCRIPTION
MERLINO WITH SWING AND GYM - LEAVES - DOUBLE TOWER STRUCTURE WITH GYM AND SWING / +AF102AP_L_ALU / Made of EN EV6060 anodized alumium 9x9cm custom mold with rounded edges, minimum thickness 2,7mm
- NR 1 NG Swing kit with seat - Made with painted steel girder and two easel supporting griders in lamellar wood. Rubber anti-shock seat with metal reinforcement inside. Chains made by hot galvanized steel rod; chain mesh avoiding fingers entrapment. Joints made by hot galavnized steel with swinging central joint
- N. 1 NG Helicopter Activity Panel Leaves - Made of colored polyethylene, sandwich type, with flow lanes, rotating disk and central knob
- N. 1 NG Net Gym Kit - .
- N. 1 NG Large Leaf Accessory - Leaves panel
- N. 1 NG Small Leaf Accessory - Leaves panel
- N. 2 NG Green Simple Panel - Panel made of HDPE polyethilene, bi-color 86cm in width with drawing on the outer layer. all the fixing elements in Stainless steel
- NR 1 NG Tibetan bridge - The net is made of steel strands rope, 18 mm diameter, covered with a colored nylon braid, highly resistant. The knots are covered with shell-shape protections.
- N. 1 NG Tower h140 with Roof Leaves - Composed by 4 posts having a 9 x 9 cm section by aluminium, 1 square platform placed at a height of 140 cm. Coloured polyethylene gable roof.
- N. 1 NG Poly-Inox Slide h140 Leaves - slide with lateral sides made of polyethylene and stainless steel slide certified according to the existing rules; starting platform height 140 cm; provided with a transversal bar.
TECHNICAL CHARACTERISTICS
| Impact area (mq): | 44 |
| Size (m): | 8,5 x 2,9 x 3,5 |

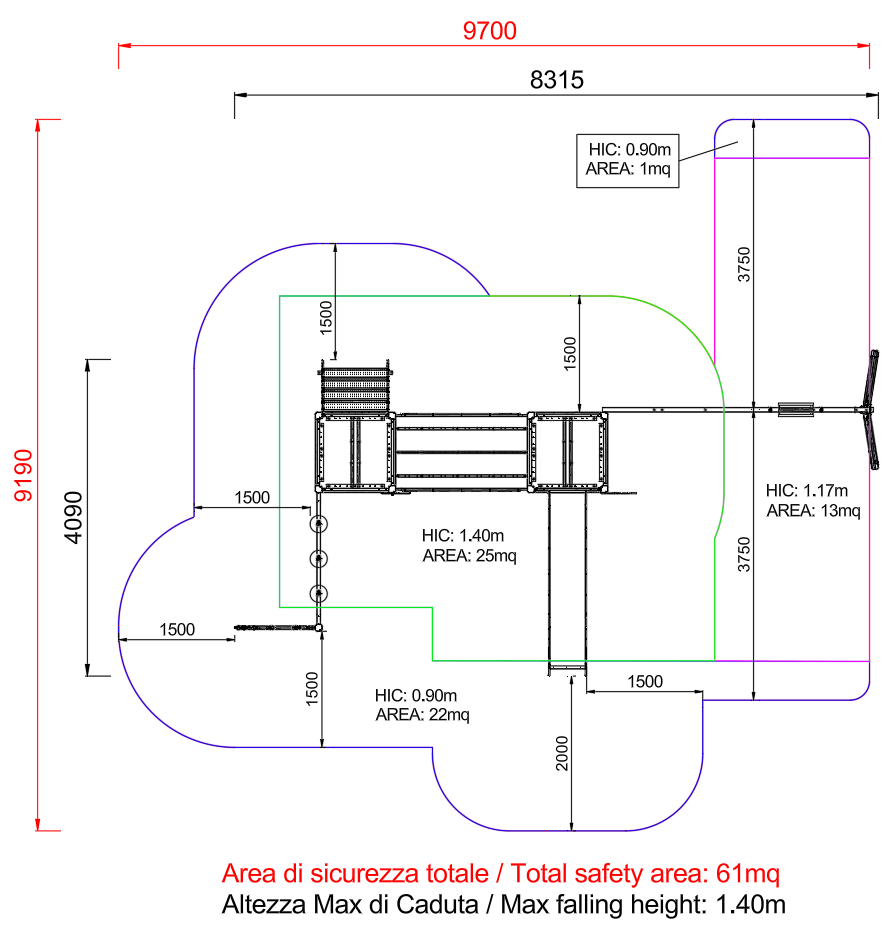

| Safety area (m): | 10 x 8,4 |
| Falling height (cm): | 140 |
MATERIALS OF CONSTRUCTION
PLAYING CHARACTERISTICS
