+AF604AP_C_ALU

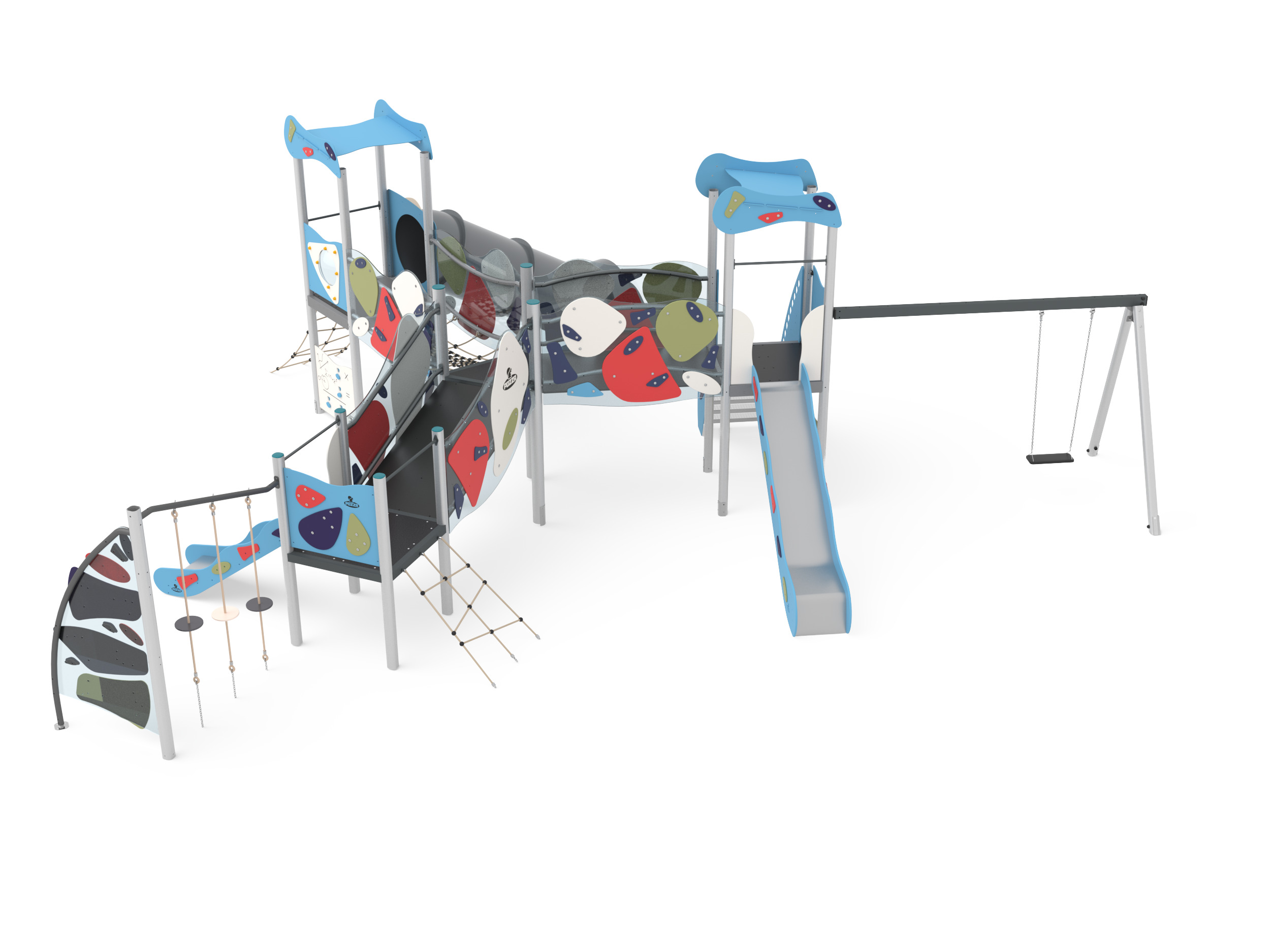

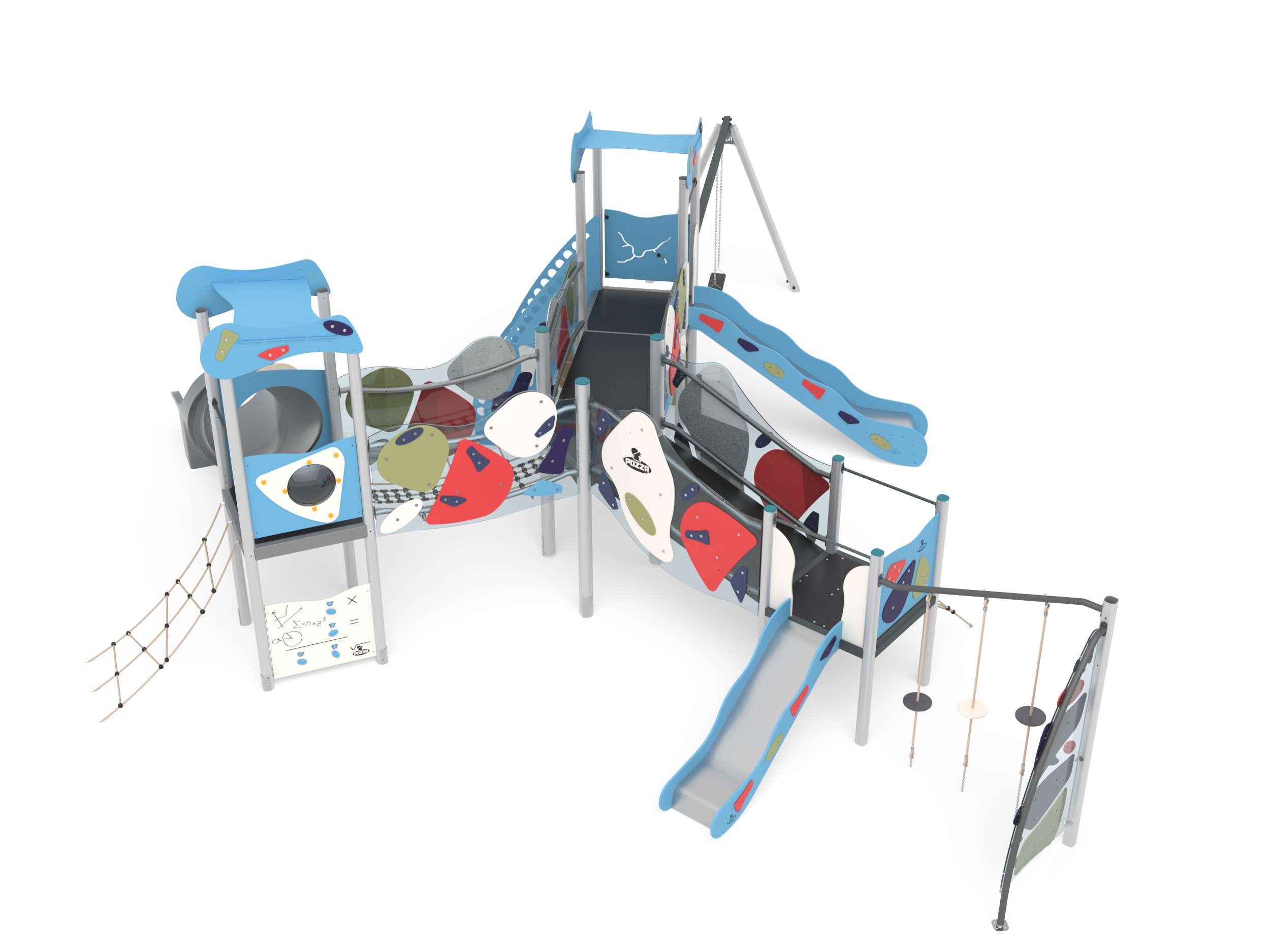

ISCHIA WITH ALTALENA E GYM – COLORI
.
DESCRIPTION
ISCHIA WITH ALTALENA E GYM - COLORI - . / +AF604AP_C_ALU
- N. 1 NG Multiplication Panel Colori - .
- NR 1 NG Swing kit with seat - Made with painted steel girder and two easel supporting griders in lamellar wood. Rubber anti-shock seat with metal reinforcement inside. Chains made by hot galvanized steel rod; chain mesh avoiding fingers entrapment. Joints made by hot galavnized steel with swinging central joint
- N. 1 NG Square tower without roof h90 cm - h90 cm tower without roof made of 4 EN EV6060 anodized alumium post with custom mold 9x9cm with rounded edges, minimum thickness 2,7mm. Central platform made of HDPE polyethilene with anti slip coating and painted and anodized steel brackets. All the fixing elements made of stainless steel
- NR 1 NG Shroud lift h140 cm - Composed by climbing net in steel rope. Included by thrust bar
- NR 1 NG Shroud lift h90 cm - Composed by climbing net in steel rope. Included by thrust bar
- NR 1 NG Triangular tower without roof h 140 cm: - Composed by 3 posts having a pentagonal section by lamellar wood, 1 square platform placed at a height of 140 cm.
TECHNICAL CHARACTERISTICS
| Impact area (mq): | 0 |
| Size (m): | 9,8 x 10 x 3,4 |

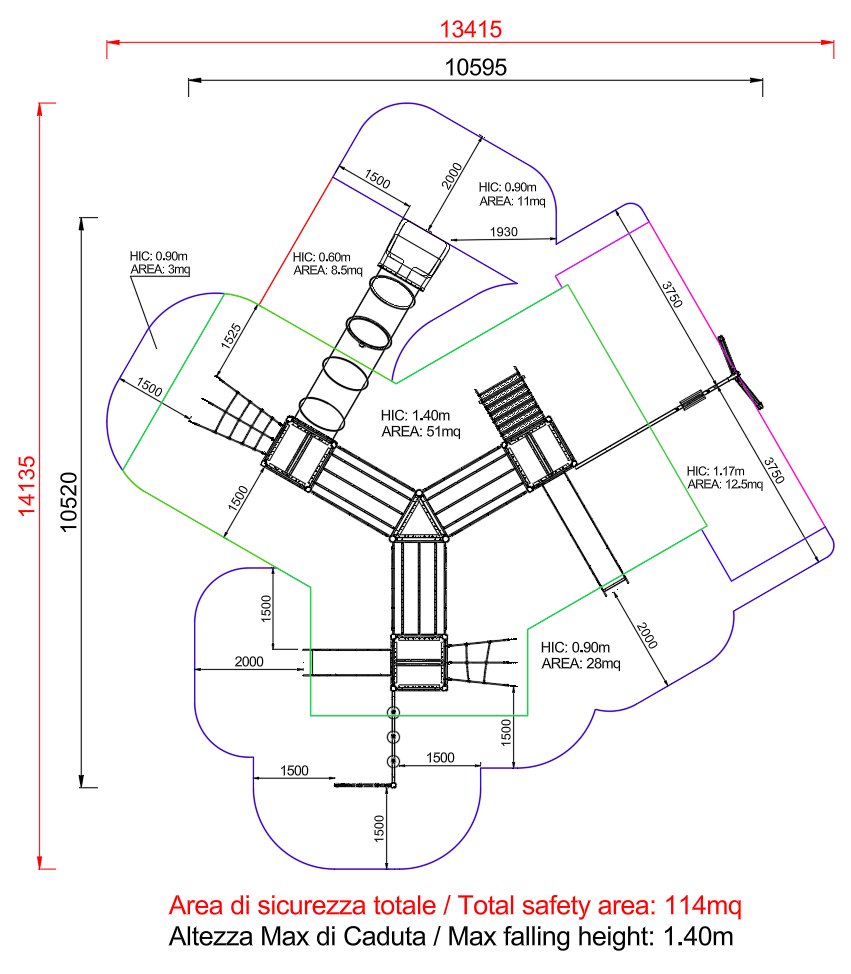

| Safety area (m): | 13,3 x 11,5 |
| Falling height (cm): | 140 |
