+AF101.EPAL_L_ALU
HOOK WITH GYM – LEAVES

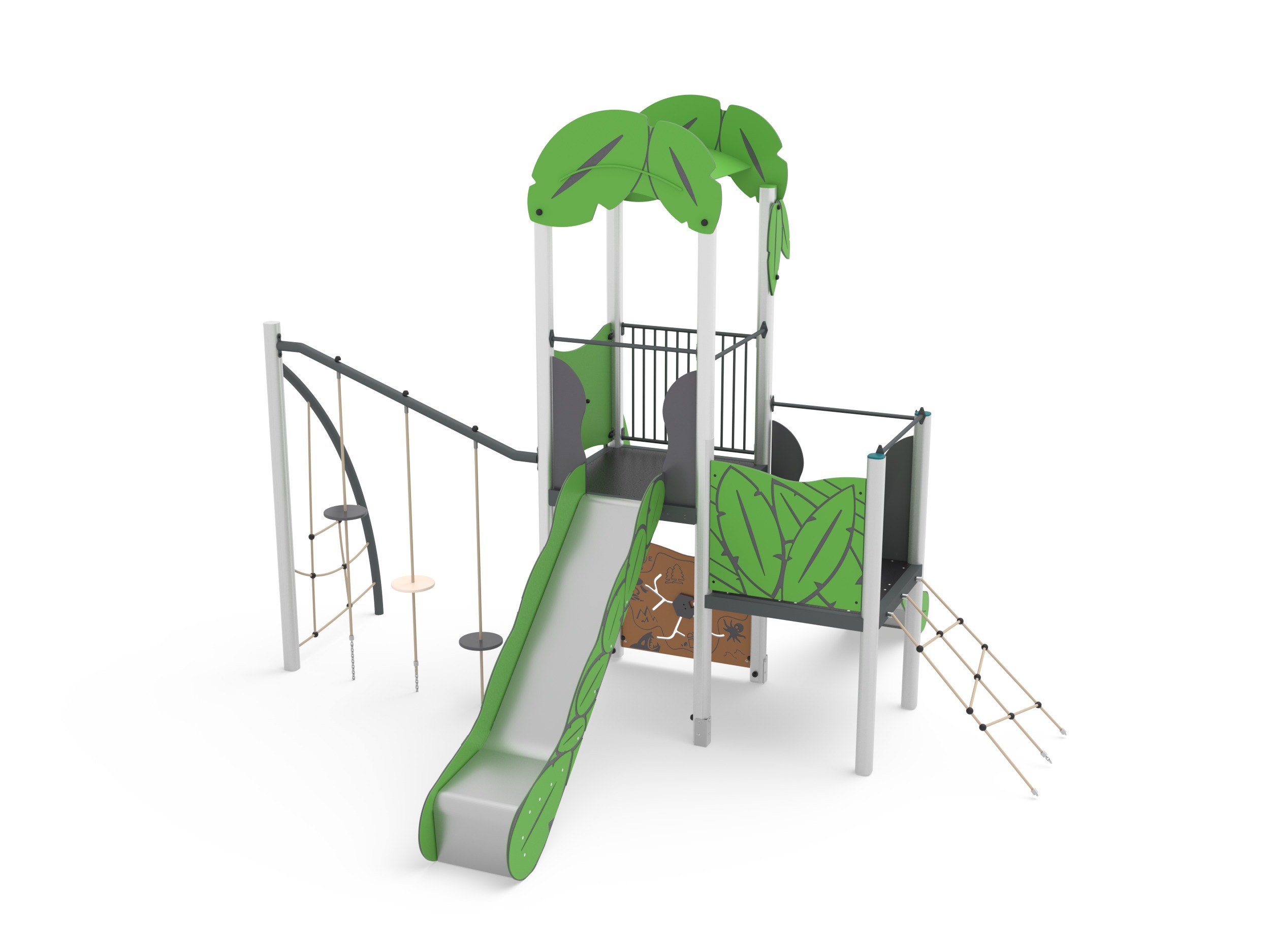

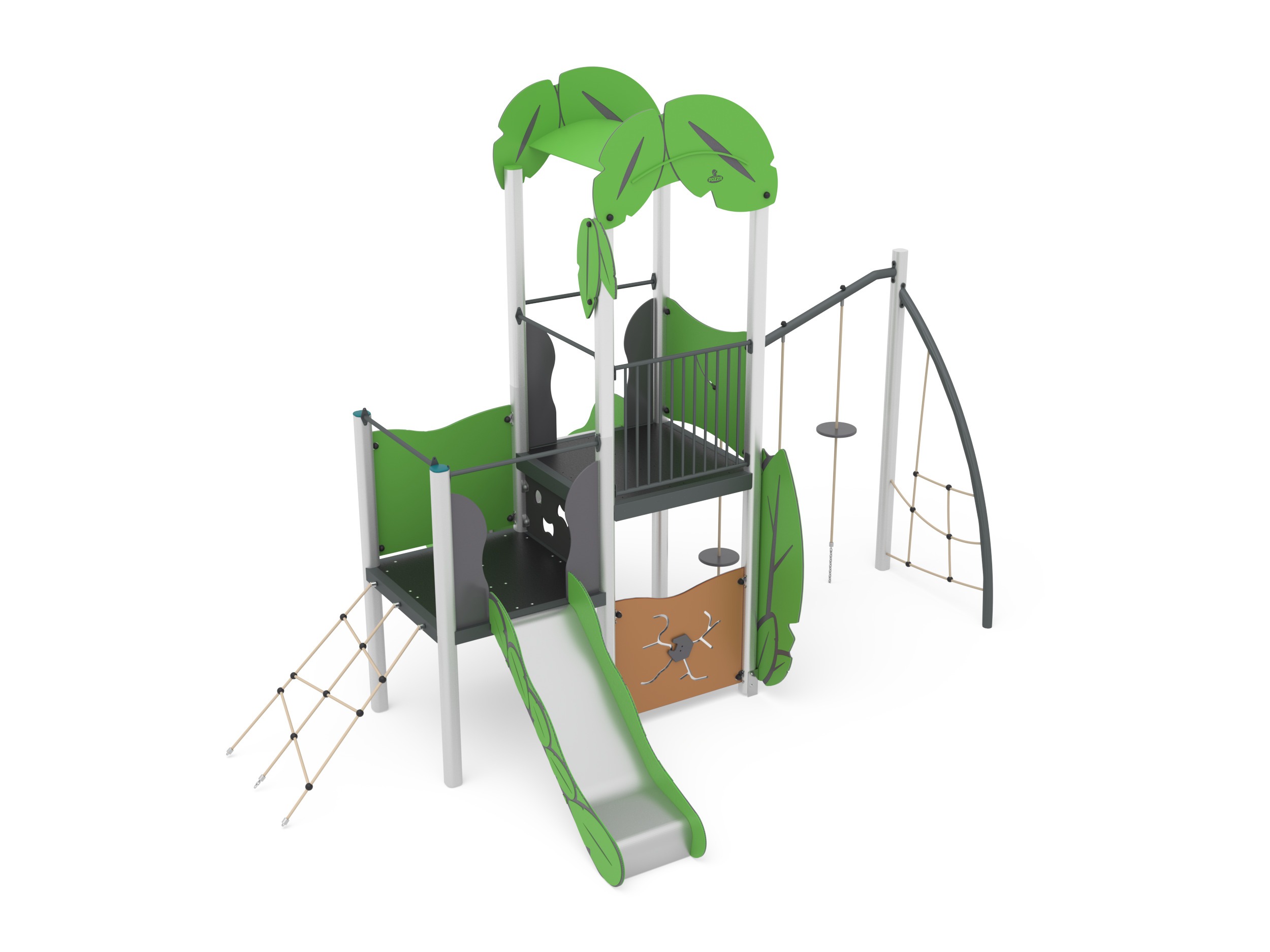

SINGLE TOWER WITH SLIDE AND GYM
DESCRIPTION
HOOK WITH GYM - LEAVES - SINGLE TOWER WITH SLIDE AND GYM / +AF101.EPAL_L_ALU / Made of EN EV6060 anodized alumium 9x9cm custom mold with rounded edges, minimum thickness 2,7mm
- NR 1 NG Square platform, under tower - Made of non slip material.
- NR 2 NG Leg 90x90 from 90 190 - .
- NR 1 NG Climbing h50 cm - Climbing between towers made of recycled material with resin climbing rocks
- N. 1 NG Large Leaf Accessory - Leaves panel
- N. 1 NG Small Leaf Accessory - Leaves panel
- N. 1 NG Green Simple Panel - Panel made of HDPE polyethilene, bi-color 86cm in width with drawing on the outer layer. all the fixing elements in Stainless steel
- N. 1 NG Angular Gym - Vertical net with frame made of lamellar wood beams fixed through disappearing and passing nuts and bolts Bars realized with stainless steel tubular pegs, mounted into two lateral wooden supports Climbing cord
- NR 1 NG Fantasy Railing - Fantasy railing in painted steel
- N. 1 NG Tower h140 with Roof Leaves - Composed by 4 posts having a 9 x 9 cm section by aluminium, 1 square platform placed at a height of 140 cm. Coloured polyethylene gable roof.
- NR 1 NG Shroud lift h90 cm - Composed by climbing net in steel rope. Included by thrust bar
- N. 1 NG Poly-Inox Slide h140 Leaves - slide with lateral sides made of polyethylene and stainless steel slide certified according to the existing rules; starting platform height 140 cm; provided with a transversal bar.
- N. 1 NG Poly-Inox Slide h90 Leaves - slide with lateral sides made of polyethylene and stainless steel slide certified according to the existing rules; starting platform height 90 cm; provided with a transversal bar.
TECHNICAL CHARACTERISTICS
| Impact area (mq): | 20 |
| Size (m): | 4,5 x 4,3 x 3,5 |
| Safety area (m): | 7,5 x 8,3 |
| Falling height (cm): | 140 |
MATERIALS OF CONSTRUCTION
PLAYING CHARACTERISTICS
