+B0400.2_ALU
DOUBLE NEST SWING
.
DESCRIPTION
DOUBLE NEST SWING - . / +B0400.2_ALU / Made of EN EV6060 anodized alumium 9x9cm custom mold with rounded edges, minimum thickness 2,7mm
- NR 2 Seat - made by anti-shock rubber with metal reinforcement inside
- NR 2 Swing Bracket - Bracket: Bracket to attach the legs and main girder made by steel
- NR 1 Double Swing Bracket - Bracket: Bracket to attach the legs and main girder of double swings made by steel
- NR 2 Supporting Beam EPAL01-01C1 - Horizontal supporting beam: Made of painted zinc-plated iron.
- NR 2 Basket Nest - Big basket “nest” composed by one steel 6-steel-rope, covered by a weatherproof and highly resistant polypropylene braid. External edge made of polypropylene braid. diam. 120 cm can be made of multiple colors(red blue/ green black). stainless steel chains to connect to the joints.
- NR 6 Fantasy Supporting Giders - Fantasy easel supporting giders: Made with aluminium girders (90x90 mm)
- NR 1 Nest seat junction - joint for nest swing: made of stainless steel steel. with internal ball bearing
- NR 4 Joints - Made of two stainelss steel parts with teflon moving part on the inside
TECHNICAL CHARACTERISTICS
| Impact area (mq): | 45 |
| Size (m): | 1,8 x 6,2 x 2,2 |

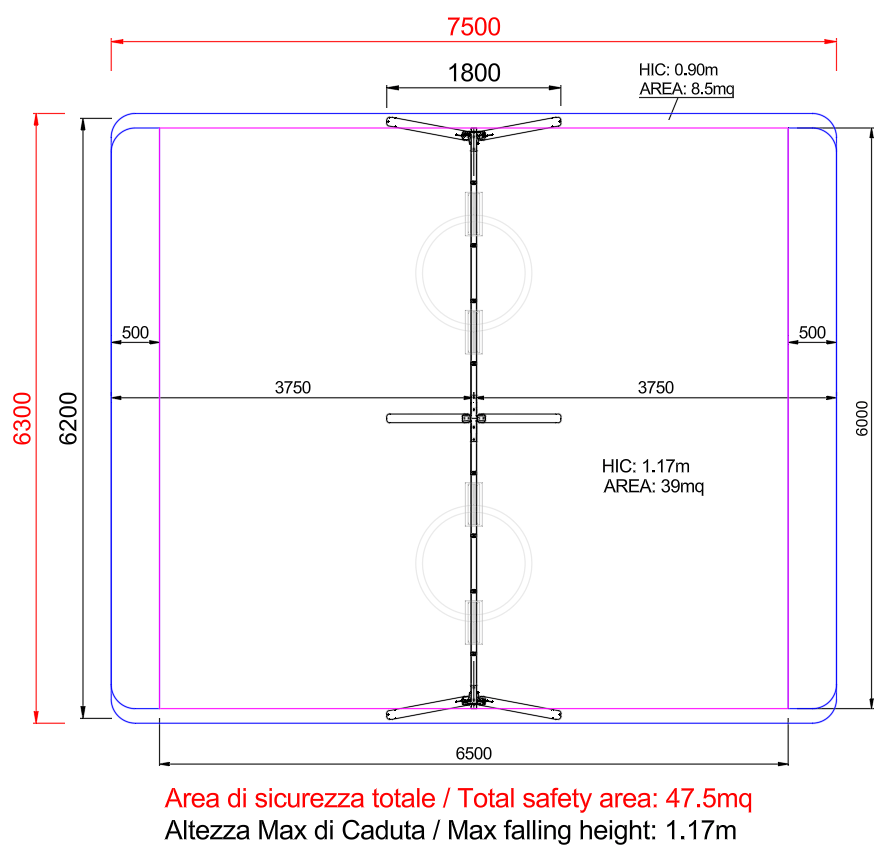

| Safety area (m): | 7,5 x 6,3 |
| Falling height (cm): | 117 |
MATERIALS OF CONSTRUCTION
PLAYING CHARACTERISTICS
