+AL90_ALU

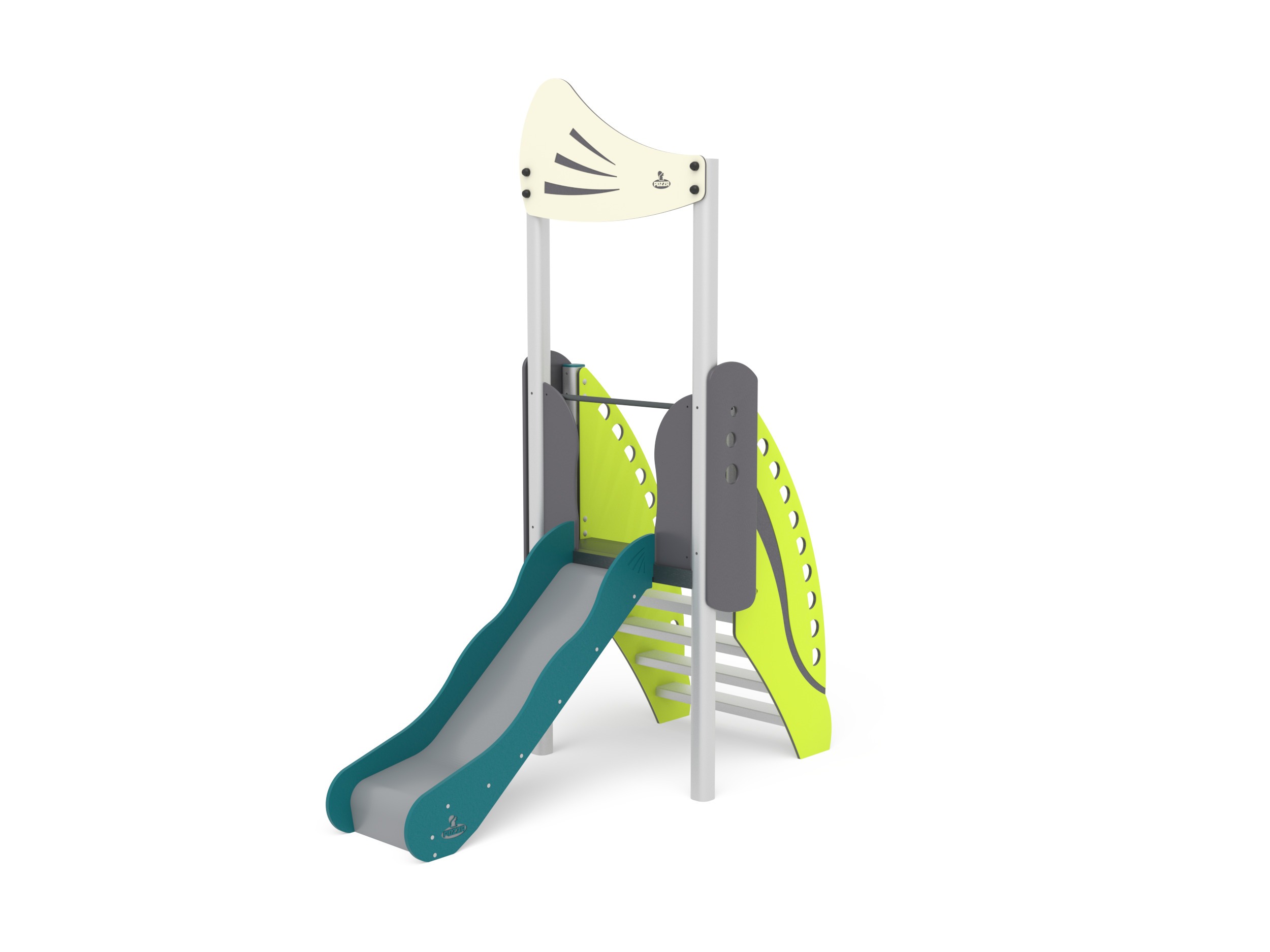

TORRE MINI BABY – FANTASY
SINGLE TOWER WITH LOW SLIDE
DESCRIPTION
TORRE MINI BABY - FANTASY - SINGLE TOWER WITH LOW SLIDE / +AL90_ALU / Made of EN EV6060 anodized alumium 9x9cm custom mold with rounded edges, minimum thickness 2,7mm
- NR 1 Climbing ladder h 90 cm-1 - made of aluminium, complete with handrails and protective panels made of polyethylene
- NR 1 Straight slide h 90 cm - slide with lateral sides made of polyethylene and stainless steel slide certified according to the existing rules; starting platform height 90 cm; provided with a transversal bar.
- NR 1 Torre Mini Structure - Mini Tower structure, consisting of a platform made of 95% recycled second-life plastic, load-bearing structure in galvanized and painted steel, two protective panels made of HDPE polyethylene composed of 51% recycled plastic 15mm thick two-tone with aesthetic engravings and uprights of support made of anodized aluminum/ wood / recycled plastic. All hardware and fasteners in stainless steel.
- NR 2 Aluminium Supporting Beam h90 - Supporting beam made of anodized aluminium
- NR 1 Pannello decorativo. - Pannello decorativo
TECHNICAL CHARACTERISTICS
| Impact area (mq): | 0 |
| Size (m): | 2,6 x 1,1 x 1,9 |

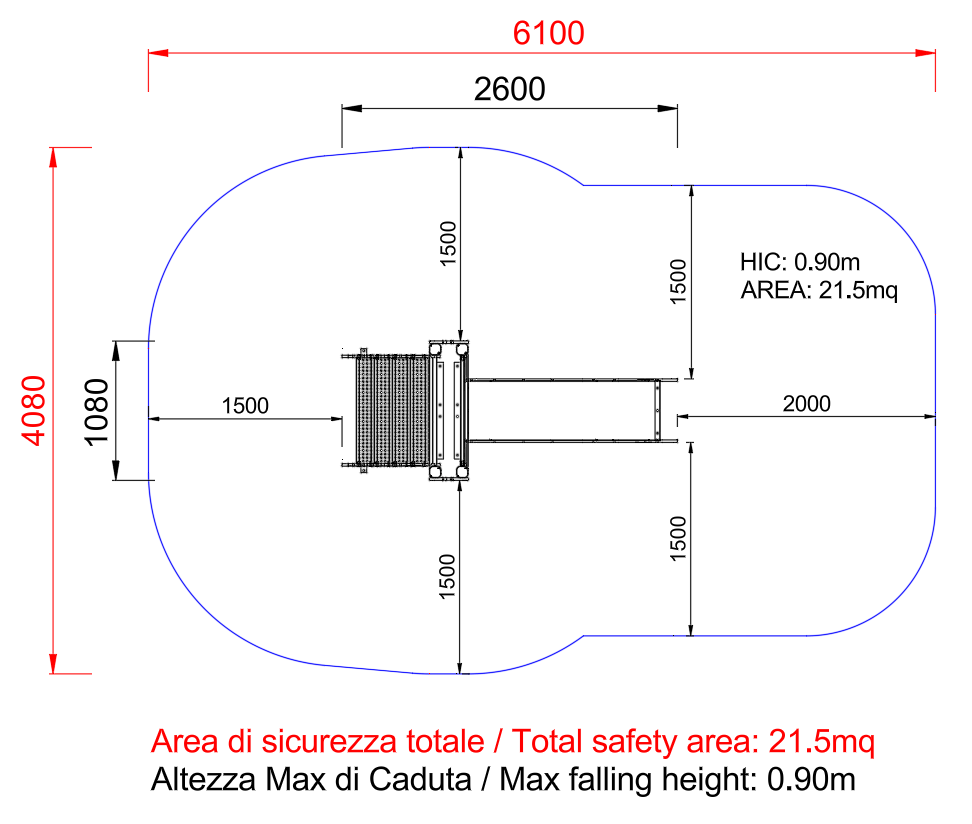

| Safety area (m): | 6,1 x 4,1 |
| Falling height (cm): | 90 |
MATERIALS OF CONSTRUCTION
PLAYING CHARACTERISTICS
