+AF102.SW-14.SVE-14_ALU

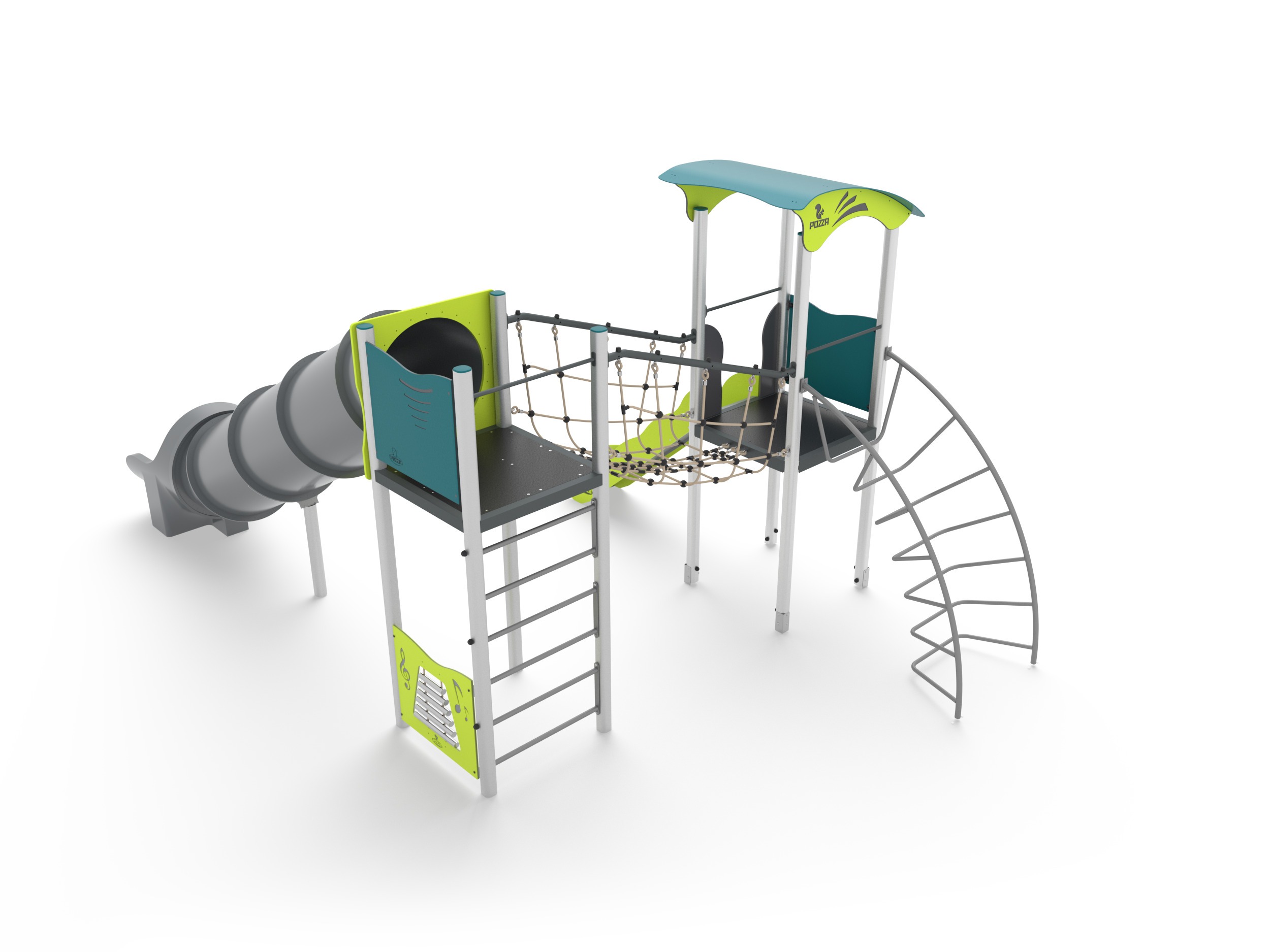

MERLINO WITH SLIDE AND TIBETAN BRIDGE – FANTASY

DOUBLE TOWER STRUCTURE, SLIDES AND LIFTS

GALLERY

DESCRIPTION

MERLINO WITH SLIDE AND TIBETAN BRIDGE - FANTASY - DOUBLE TOWER STRUCTURE, SLIDES AND LIFTS / +AF102.SW-14.SVE-14_ALU / Made of EN EV6060 anodized alumium 9x9cm custom mold with rounded edges, minimum thickness 2,7mm

  • N. 1 NG Musical Panel Fantasy - Polyethilene music panel with Steel tubes and a rubber hammer to play music on
  • N. 1 NG Fantasy holding bar - Fantasy steel holding bar L.860
  • N. 2 NG Simple Turquoise Panel - .
  • N. 1 NG Triple Vertical Wall Bars - .
  • N. 1 NG Tibetan bridge - The net is made of steel strands rope, 18 mm diameter, covered with a colored nylon braid, highly resistant. The knots are covered with shell-shape protections.
  • N. 1 NG Square tower h 190 cm without roof: - Composed of 4 posts having a 9 x 9 cm section by lamellar wood, 1 square platform placed at a height of 190 cm.
  • N. 1 NG Square tower h140 cm Fantasy - Composed of 4 posts having a 9 x 9 mm section by aluminium, 1 square platform placed at a height of 140 cm. Coloured polyethylene gable roof
  • N. 1 NG Steel stepladder h140 cm - Composed by painted steel
  • N. 1 NG Straight slide h140 cm Fantasy - slide with lateral sides made of polyethylene and stainless steel slide certified according to the existing rules; starting platform height 140 cm; provided with a transversal bar.
  • N. 1 NG Tube-shaped slide h 190 cm diameter 80 cm Fantasy - Polyethylene slide certified according to the existing rules; starting platform height 190 cm

TECHNICAL CHARACTERISTICS

Impact area (mq):40.5
Size (m):3,9 x 6,7 x 3,3

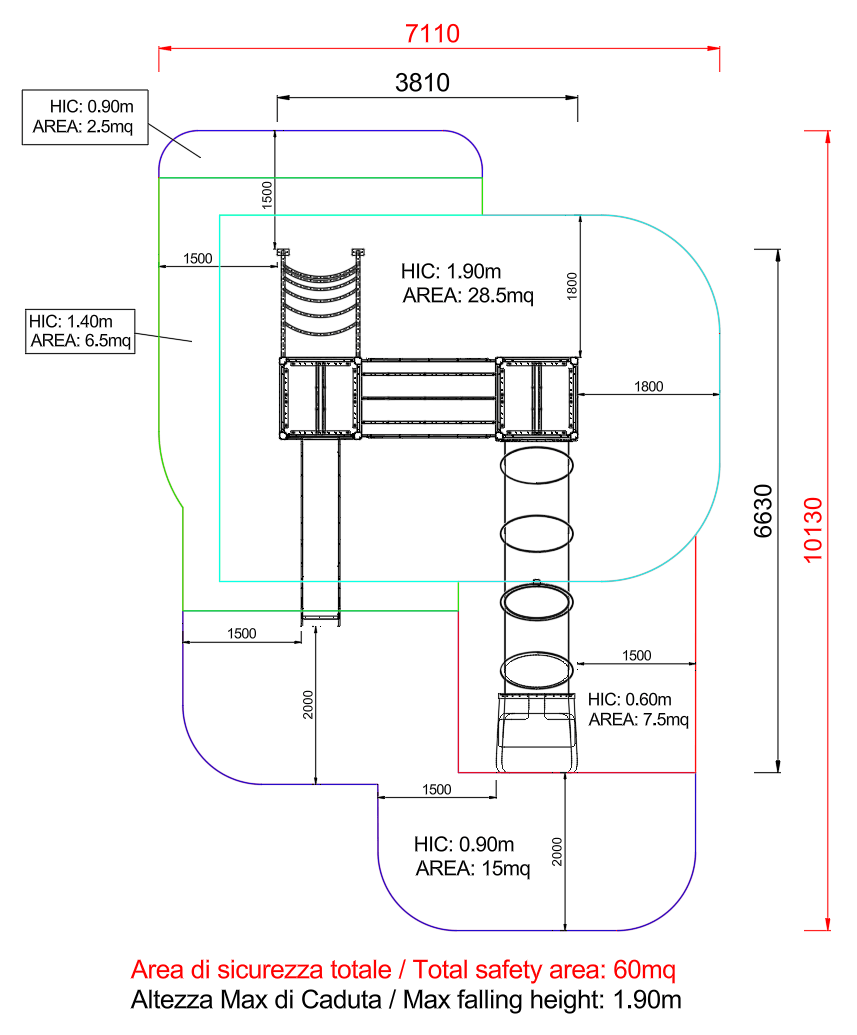

Safety area (m):7,2 x 10,2
Falling height (cm):190
