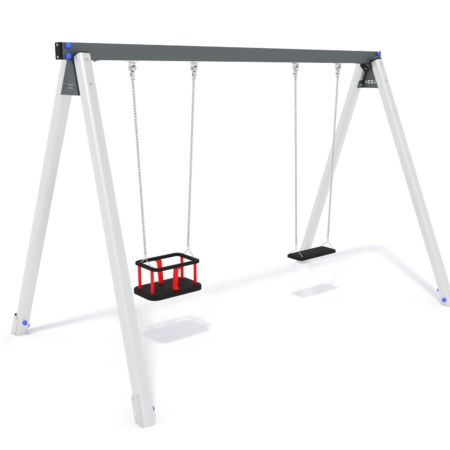

+B0300.PZ028_ALU
LARGE SWING INCLUSIVE
INCLUSIVE SWING WITH STRAIGHT SEAT
DESCRIPTION
LARGE SWING INCLUSIVE - INCLUSIVE SWING WITH STRAIGHT SEAT / +B0300.PZ028_ALU / Made of EN EV6060 anodized alumium 9x9cm custom mold with rounded edges, minimum thickness 2,7mm
- NR 4 Fantasy Supporting Giders - Fantasy easel supporting giders: Made with aluminium girders (90x90 mm)
- NR 1 Supporting Beam EPAL01-01C1 - Horizontal supporting beam: Made of painted zinc-plated iron.
- NR 1 Inclusive seat - made of polyethylene and steel, resistant to atmospheric agents, ergonomically shaped, with user locking system, also suitable for disabled users.
- NR 1 Seat - made by anti-shock rubber with metal reinforcement inside
- NR 2 Swing Bracket - Bracket: Bracket to attach the legs and main girder made by steel
- NR 4 Joints - Made of two stainelss steel parts with teflon moving part on the inside
TECHNICAL CHARACTERISTICS

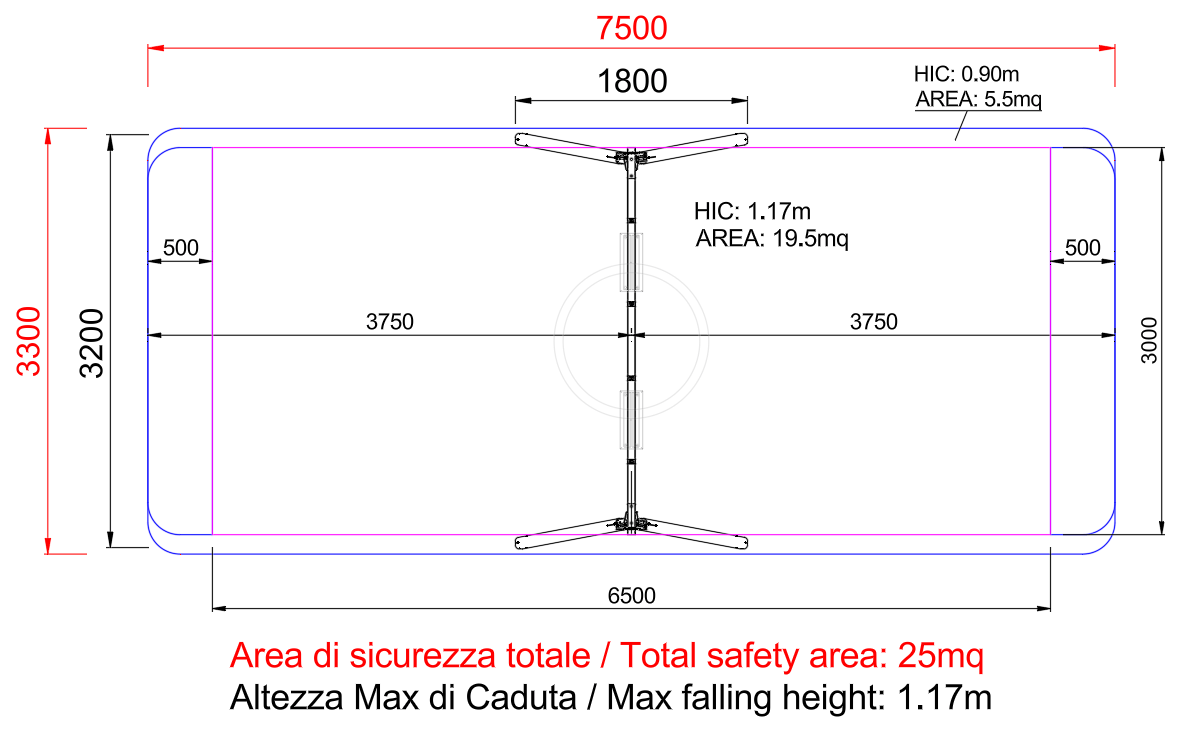

| Impact area (mq): | 19.5 |
| Size (m): | 1,8 x 3,2 x 2,2 |
| Safety area (m): | 7,5 x 3,3 |
| Falling height (cm): | 117 |
MATERIALS OF CONSTRUCTION
PLAYING CHARACTERISTICS
