U0100.T-9 style LEAVES
PERCORSO EQUILIBRIO AVVENTURA BABY LEAVES

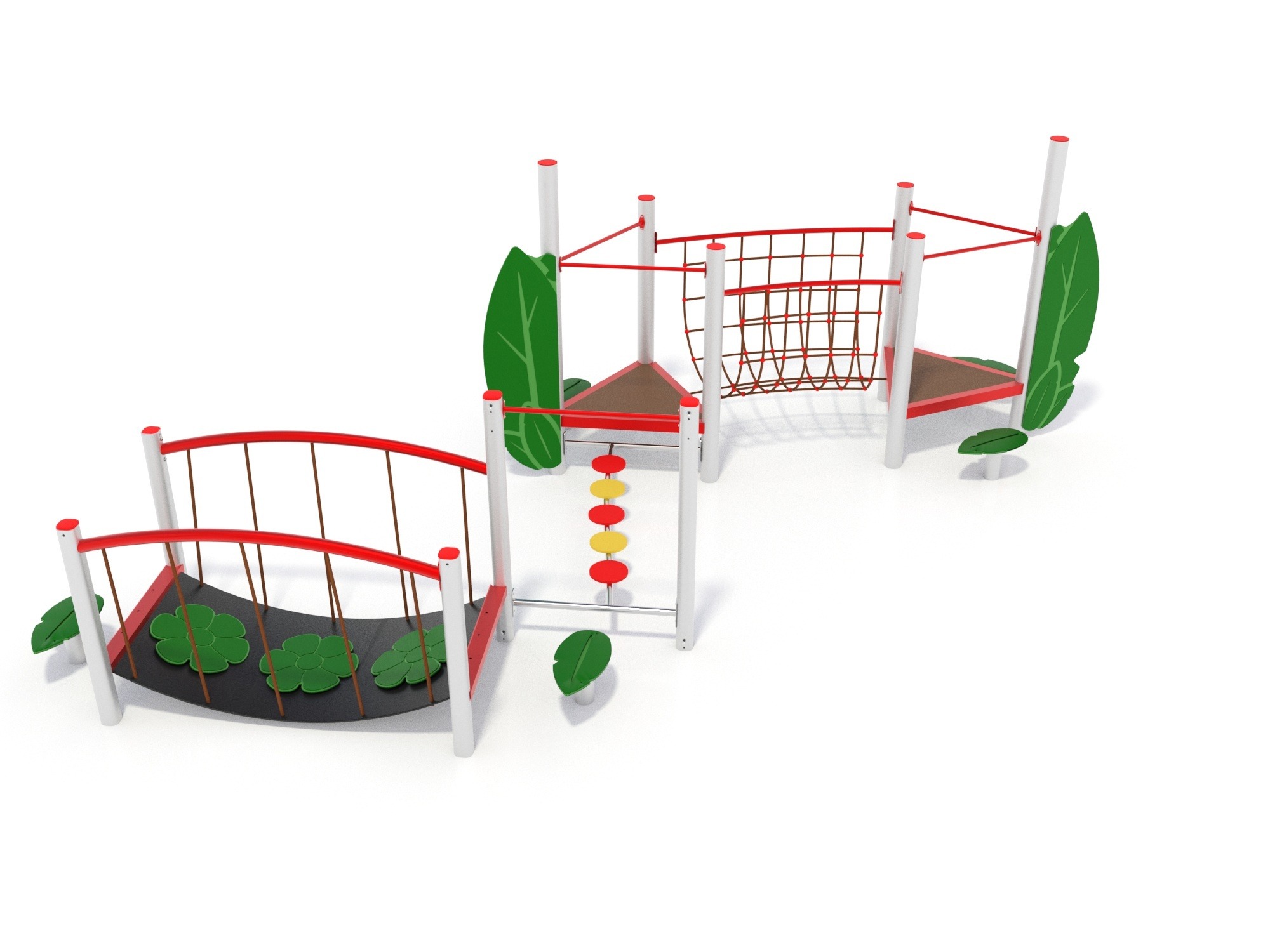

double tower structure with bridges and platforms


DESCRIPTION
PERCORSO EQUILIBRIO AVVENTURA BABY LEAVES - double tower structure with bridges and platforms / U0100.T-9 style LEAVES / Made of EN EV6060 anodized alumium 9x9cm custom mold with rounded edges, minimum thickness 2,7mm
- NR 2 Triangular tower ALU h40 cm - Triangular tower h40 with a carply platform and galvanized steel beams
- NR 5 Step Leaves - Polyethilene flower supported by a galvanized steel bean
- NR 5 Aluminium Supporting Beam - Supporting beam made of anodized aluminium
- NR 1 Mobile bridge Leaves - Leaves step bridge ade with 2 painted steel supporting beams and 3 step flowers made of HDPE polyethilene attached to the structure with steel ropes coated in nylon
- NR 1 Ground gym baby - GROUND GYM BABY
- NR 7 Fantasy holding bar - Fantasy steel holding bar L.860
- NR 2 Panel style leaves h200 - Leaves panel
- NR 1 Curved Tibetan bridge - The net is made of steel strands rope, 18 mm diameter, covered with a colored nylon braid, highly resistant. The knots are covered with shell-shape protections
TECHNICAL CHARACTERISTICS
Impact area (mq): | 0 |

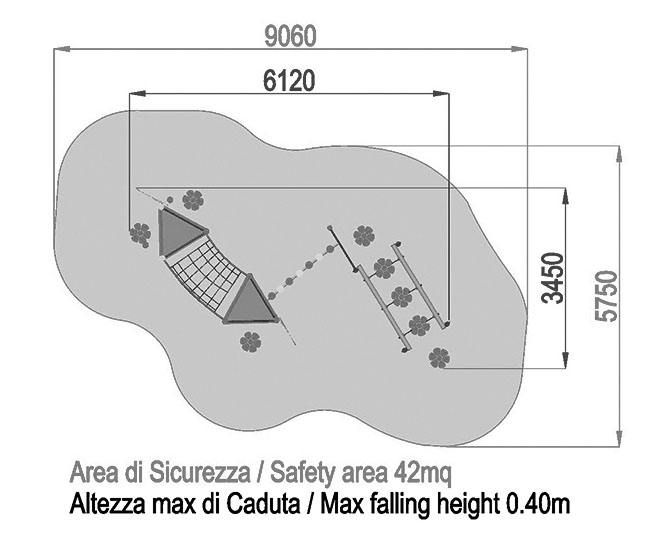

Size (cm): | 612 x 345 x 100 |
Safety area (cm): | 906 x 575 |
Falling height (cm): | 40 |
MATERIALS OF CONSTRUCTION

PLAYING CHARACTERISTICS
