TORRE BABELE ALLUMINIO

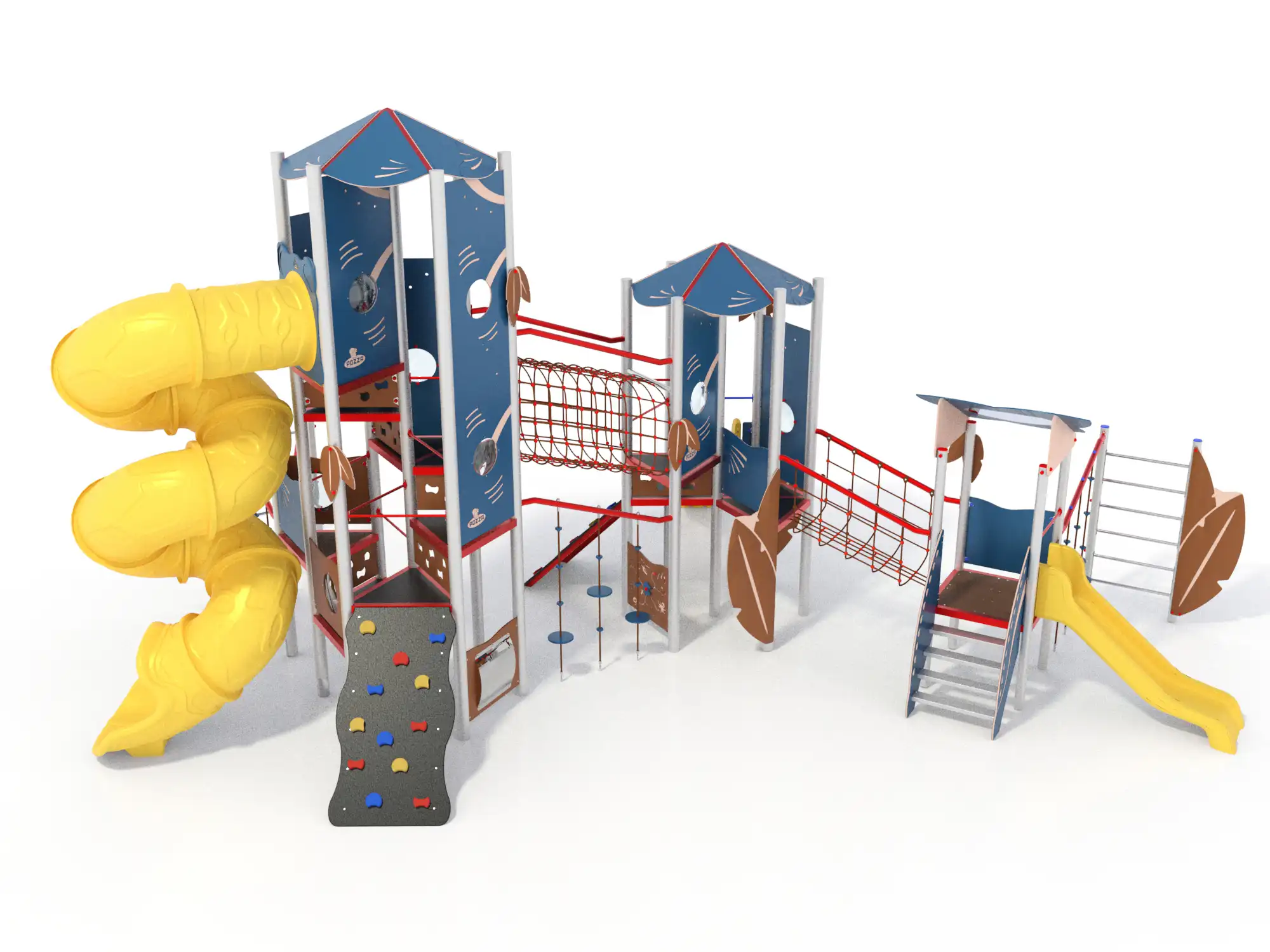

TORRE BABELE ALLUMINIO - Multi tower structure on various levels with tube slide / AF102SSU.SWE-35 style ALU / Made of EN EV6060 anodized alumium 9x9cm custom mold with rounded edges, minimum thickness 2,7mm

• NR 7 Protection lateral panels Babele small - Panel made of HDPE polyethilene, bi-color 86cm in width with drawing on the outer layer. all the fixing elements in Stainless steel
• NR 1 Steel ladder-2 - rungs made of stainless steel. Complete with steel bar.
• NR 1 Square tower h 90 cm - Composed by 4 posts having a 10 cm diameter by anodized steel, 1 square platform placed at a height of 90 cm. Coloured polyethylene gable roof
• NR 3 Protection lateral panels - Panel made of HDPE polyethilene, bi-color 86cm in width with drawing on the outer layer. all the fixing elements in Stainless steel
• NR 1 Climbing ladder h 90 cm - made of impregnated wood, complete with handrails and protective panels made of polyethylene
• NR 1 Mirror MAGIC Panel - Made of polyethylene, with mirror made polished stainless steel.
• NR 1 Scivolo h 140 cm LLDPE - Scivolo in polietilene realizzato secondo le normative vigenti, con partenza a 140 cm, completo di barra reggispinta e pannelli di tamponamento in polietilene.
• NR 1 Rope bridge Leaves - Rope bridge made of a stainless steel supporting beam with vertical ropes
• NR 2 Angular Gym - Vertical net with frame made of lamellar wood beams fixed through disappearing and passing nuts and bolts Bars realized with stainless steel tubular pegs, mounted into two lateral wooden supports Climbing cord
• NR 6 Climbing h50 - Climbing between towers made of recycled material with resin climbing rocks
• NR 1 CLOSED TIBETAN INCLINED TUNNEL - TIBETAN TUNNEL MADE OF STEEL CORD COVERED BY NYLON
• NR 1 Tibetan bridge - The net is made of steel strands rope, 18 mm diameter, covered with a colored nylon braid, highly resistant. The knots are covered with shell-shape protections.
• NR 3 Panel style leaves h200 - Leaves panel
• NR 1 Straight slide-3 - Polyethylene slide certified according to the existing rules; starting platform height 90 cm; provided with a transversal bar.
• NR 1 Activity panel - Made of colored polyethylene, sandwich type, with flow lanes, rotating disk and central knob
• NR 14 Triangular platform, under tower - Made of non-slip material
• NR 1 Spiral-shaped slide h 350 cm - Spiral-shaped slide, 350cm high, provided with protection and safety bars placed at the starting point
• NR 2 Free-climbing inclined ramp h 140 cm - Consisting of non-slip multi-layer panel on which are fixed the resin supports, free-climbing type.
• NR 2 Pannelli laterali di protezione oblo' - Realizzati in polietilene colorato e oblo' in policarbonato trasparente, completi di staffe in acciaio inox per il fissaggio alla torretta.
• NR 2 Fantasy hexagonal roof - Fantasy hexagonal roof with 6 pitches in polyethylene and steel supports, stainless steel screws
• NR 6 Panel style leaves h50 - Leaves panel
• NR 7 Fantasy Railing - Fantasy railing in painted steel
• NR 15 Circle Aluminium Supporting Beam - Circle supporting beam Ø120mm made of anodized aluminium
