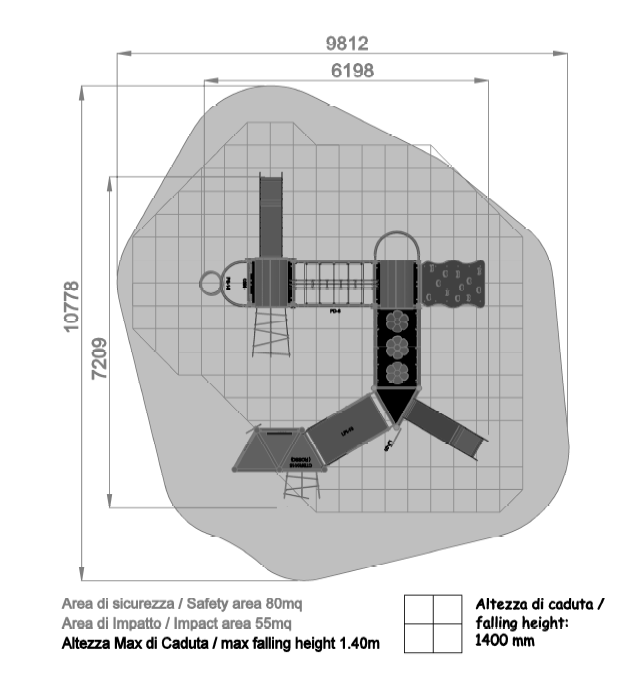

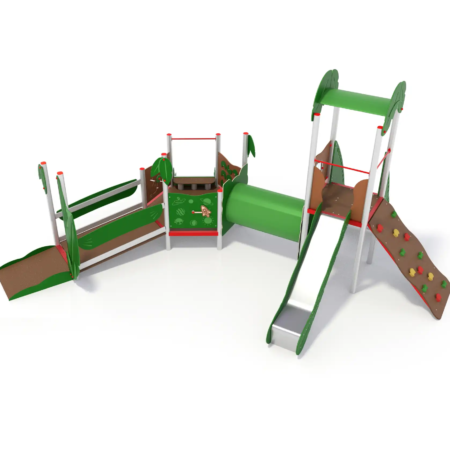

PIACENZA LEAVES

PIACENZA LEAVES - multi-level structure, towers and lifts / AF623 style LEAVES / Made of EN EV6060 anodized alumium 9x9cm custom mold with rounded edges, minimum thickness 2,7mm

• NR 1 Grand staircase h 90 cm - Composed by no-slip material platform supported by aluminium uprights
• NR 1 Shroud lift h 90 cm - Composed by climbing net in steel rope. Included by thrust bar
• NR 1 Triangular tower h 140 cm without the roof - Composed of 3 posts having a diameter 10 cm section by galvanized steel, 1 triangular platform placed at a height of 140 cm.
• NR 2 Stainless steel slide style Leaves h140 - Stainless steel slide with polytheilene Leaves sides
• NR 1 Right mobile bridge - Mobile bridge made of a painted steel frame with HDPE moving flowers as base and a rubber floor for safety
• NR 1 Panel style leaves h200 - Leaves panel
• NR 1 Activity panel - Made of colored polyethylene, sandwich type, with flow lanes, rotating disk and central knob
• NR 1 Panels inside-out-2 - Made of polyethylene shaped with a central geometric hole, provided with stainless steel brackets for fixing them to the tower
• NR 2 Torre quadrata, pedana h 140 cm Fantasy alluminio - Torre altezza 140cm Realizzata con nr 4 montanti in alluminio EN EV6060 anodizzato con profilo speciale 90mm x 90mm con spigoli arrotondati raggio 32mm e anime interne di rinforzo spessore minimo 2,7 mm tutta la bulloneria e fissaggi in acciaio inox, 1 pianale dimensione 1040mm x 1040mm realizzato con profili in acciaio zincato e verniciato e pedana in plastica riciclata al 95% seconda vita spessore 25mm. Tetto realizzato con due falde in polietilene HDPE composto per il 51% di plastica riciclata spessore 20mm e un pannello curvo in polietilene
• NR 1 Fireman pole h 190 cm - Made of tubular stainless steel
• NR 1 Free-climbing inclined ramp h. 140 - H140 Climbing platform - Made of an HDPE panels with anti slip coating, resin climbing holds on top. Support structure made of painted and galvanized steel. All fixing elements made of stainelss steel
• NR 1 Simple roof - HDPE Polyethilene roof with stainless steel fixing bracket
• NR 1 Ponte tibetano-2 - Ponte tibetano realizzato con rete in corda di acciaio rivestita in nylon sorretta da struttura in acciaio verniciato. Tutta la bulloneria e i sistemi di fissaggio in acciaio inox.
• NR 1 Shroud lift h 140 cm - Composed by climbing net in steel rope. Included by thrust bar
• NR 1 Spiral perch h 140 cm - Composed bystainless steel tubular, support bracket and locking handles in painted steel
• NR 2 Panel style leaves h50 - Leaves panel
• NR 1 Mirror MAGIC Panel - Made of polyethylene, with mirror made polished stainless steel.
• NR 1 OXO Panel - Two colored polyethylene panel with serigraphy XOX symbols, 9 half-moon rolling panels, Inox steel bolts.
• NR 1 Fixed inclined bridge - Walkway made of impregnated wood, with polyethylene parapets
