+AF101.EPAL_ALU

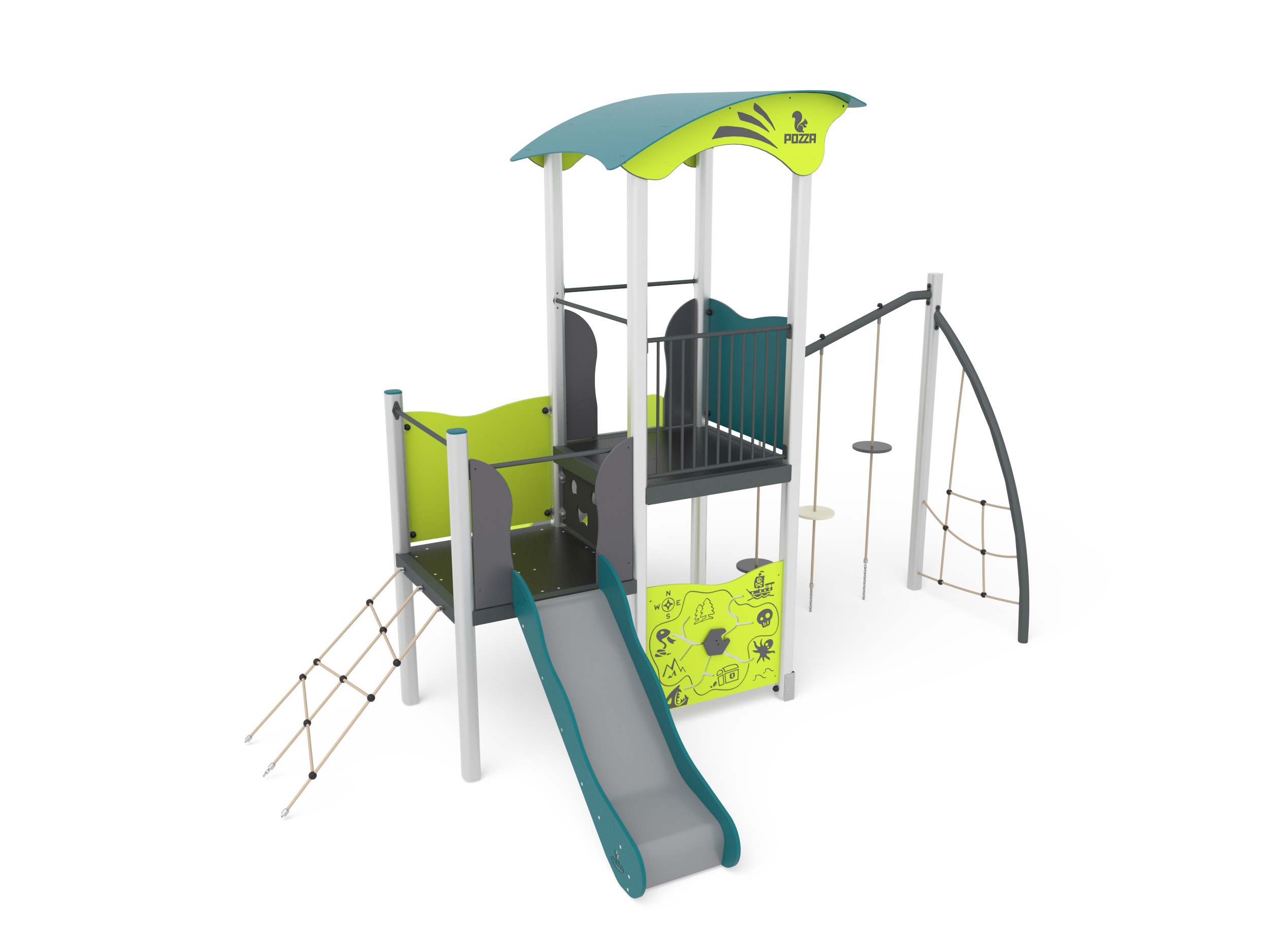

HOOK CON PALESTRA – FANTASY
SINGLE TOWER WITH SLIDE AND GYM
DESCRIPTION
HOOK CON PALESTRA - FANTASY - SINGLE TOWER WITH SLIDE AND GYM / +AF101.EPAL_ALU
- NR 1 NG Treasure Hunt Panel - .
- NR 1 NG Square platform, under tower - Made of non slip material.
- NR 2 NG Leg 90x90 from 90 190 - .
- NR 1 NG Climbing h50 cm - Climbing between towers made of recycled material with resin climbing rocks
- NR 1 NG Simple Turquoise Panel - .
- NR 1 NG Simple Lime Panel - Panel made of HDPE polyethilene, bi-color 86cm in width with drawing on the outer layer. all the fixing elements in Stainless steel
- NR 1 NG Angular Gym - Vertical net with frame made of lamellar wood beams fixed through disappearing and passing nuts and bolts Bars realized with stainless steel tubular pegs, mounted into two lateral wooden supports Climbing cord
- NR 1 NG Fantasy Railing - Fantasy railing in painted steel
- NR 1 NG Square tower h140 cm Fantasy - Composed of 4 posts having a 9 x 9 mm section by aluminium, 1 square platform placed at a height of 140 cm. Coloured polyethylene gable roof
- NR 1 NG Shroud lift h90 cm - Composed by climbing net in steel rope. Included by thrust bar
- NR 1 NG Straight slide h140 cm Fantasy - slide with lateral sides made of polyethylene and stainless steel slide certified according to the existing rules; starting platform height 140 cm; provided with a transversal bar.
- NR 1 NG Straight slide h90 cm Fantasy - slide with lateral sides made of polyethylene and stainless steel slide certified according to the existing rules; starting platform height 90 cm; provided with a transversal bar.

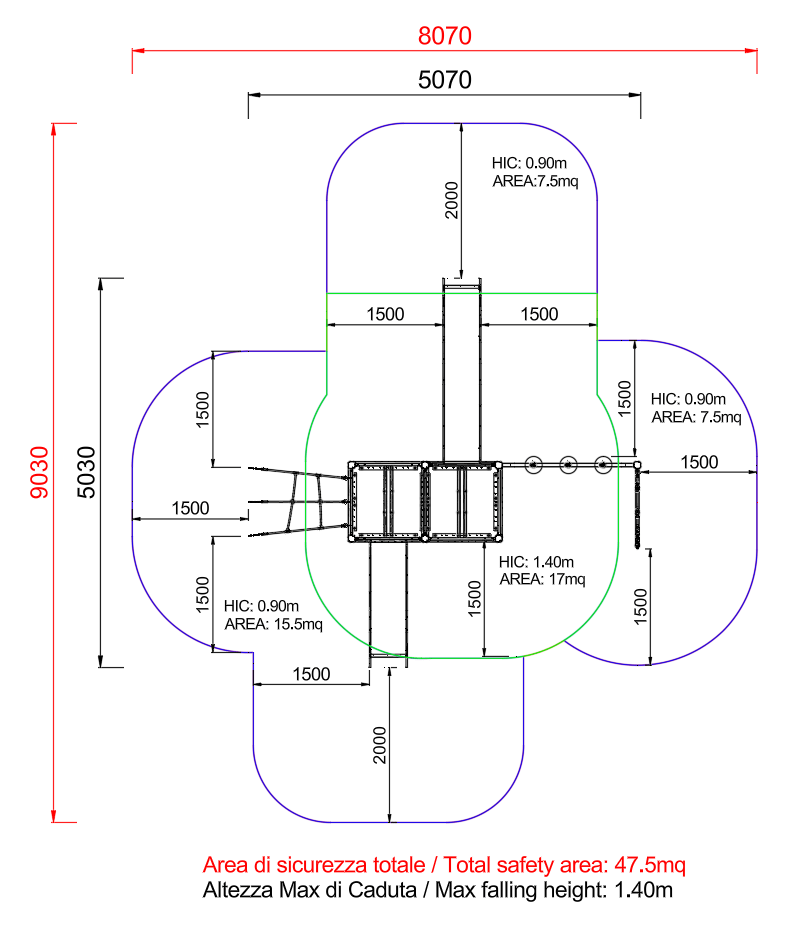

TECHNICAL CHARACTERISTICS
| Impact area (mq): | 19 |
| Size (cm): | 5,1 x 5,1 x 3,4 |
| Safety area (cm): | 8,1 x 9,1 |
| Falling height (cm): | 140 |
