AF100P.PP-14
FATA CON PALESTRA E TAVOLO MANIPOLAZIONE
single tower with slide and lift


DESCRIPTION
FATA CON PALESTRA E TAVOLO MANIPOLAZIONE - single tower with slide and lift / AF100P.PP-14 / Made of CAM compliant wood.
- NR 1 Square tower h 90 cm with tubular type roof - Composed of 4 posts having a 9 x 9 cm section by nordic pine wood, 1 square platform placed at a height of 90 cm and tubular-type roof made of painted steel
- NR 1 Free-climbing inclined ramp h 90 cm - H90 Climbing platform - Made of an HDPE panels with anti slip coating, resin climbing holds on top. Support structure made of painted and galvanized steel. All fixing elements made of stainelss steel
- NR 1 Angular Gym - Vertical net with frame made of lamellar wood beams fixed through disappearing and passing nuts and bolts Bars realized with stainless steel tubular pegs, mounted into two lateral wooden supports Climbing cord
- NR 1 Playground table attachment - Playground table made of HDPE Polyethilene with an aluminium beam support and a flower shaped HDPE seat
- NR 1 Pannelli laterali di protezione oblo' - Realizzati in polietilene colorato e oblo' in policarbonato trasparente, completi di staffe in acciaio inox per il fissaggio alla torretta.
- NR 1 Straight slide h 90 cm - slide with lateral sides made of polyethylene and stainless steel slide certified according to the existing rules; starting platform height 90 cm; provided with a transversal bar.
TECHNICAL CHARACTERISTICS
Impact area (mq): | 0 |

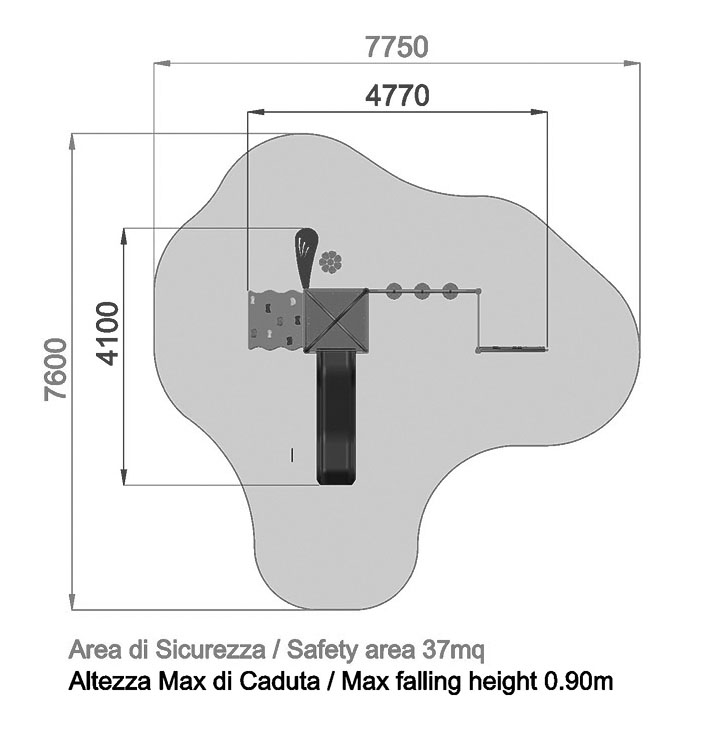

Size (cm): | 477 x 410 x 280 |
Safety area (cm): | 775 x 760 |
Falling height (cm): | 90 |
MATERIALS OF CONSTRUCTION
