+AF100PB.SCL1-14_ALU
FATA BABY WITH GYM AND CLIMBING – FANTASY
.
DESCRIPTION
FATA BABY WITH GYM AND CLIMBING - FANTASY - . / +AF100PB.SCL1-14_ALU
- NR 1 NG Step Flower - Polyethilene flower supported by a galvanized steel bean
- NR 1 NG Protection lateral panels with polycarbonate portholes - Made of polyethylene, with polycarbonate portholes, provided with stainless steel brackets for fixing them to the tower.
- NR 1 NG Simple Lime Panel - Panel made of HDPE polyethilene, bi-color 86cm in width with drawing on the outer layer. all the fixing elements in Stainless steel
- NR 1 NG Angular Gym - Vertical net with frame made of lamellar wood beams fixed through disappearing and passing nuts and bolts Bars realized with stainless steel tubular pegs, mounted into two lateral wooden supports Climbing cord
- NR 1 NG Square tower h90 cm - .
- NR 1 NG Free-climbing inclined ramp h 90 cm - H90 Climbing platform - Made of an HDPE panels with anti slip coating, resin climbing holds on top. Support structure made of painted and galvanized steel. All fixing elements made of stainelss steel
- NR 1 NG Straight slide h90 cm Fantasy - slide with lateral sides made of polyethylene and stainless steel slide certified according to the existing rules; starting platform height 90 cm; provided with a transversal bar.
TECHNICAL CHARACTERISTICS

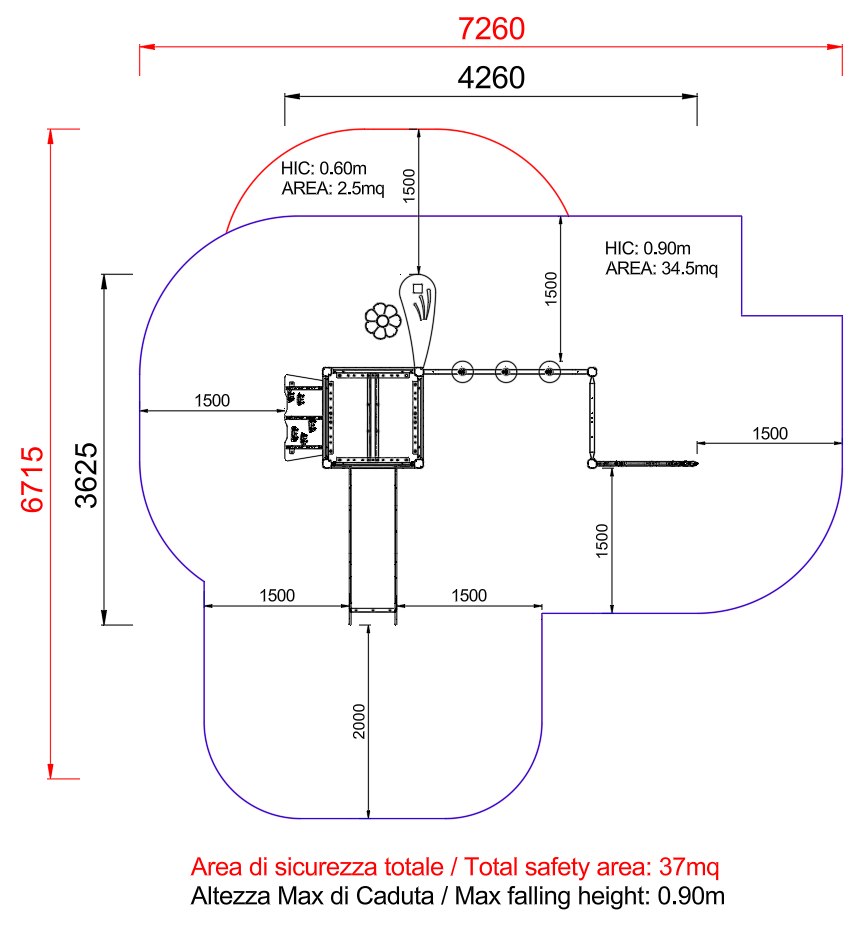

| Impact area (mq): | 38 |
| Size (cm): | 4,3 x 3,7 x 3 |
| Safety area (cm): | 7,3 x 6,8 |
| Falling height (cm): | 90 |
