B0400
ALTALENA NIDO
1 seat
DESCRIPTION
ALTALENA NIDO - 1 seat / B0400 / Made of CAM compliant wood.
- NR 1 Basket Nest - Big basket “nest” composed by one steel 6-steel-rope, covered by a weatherproof and highly resistant polypropylene braid. External edge made of polypropylene braid. diam. 120 cm can be made of multiple colors(red blue/ green black). stainless steel chains to connect to the joints.
- NR 4 Supporting Giders - Easel supporting giders: Made with impregnated lamellar girders (90x90 mm)
- NR 1 Supporting Beam EPAL01-01C1 - Horizontal supporting beam: Made of painted zinc-plated iron.
- NR 2 Swing Bracket - Bracket: Bracket to attach the legs and main girder made by steel
- NR 2 Nest seat junction - joint for nest swing: made of stainless steel steel. with internal ball bearing
TECHNICAL CHARACTERISTICS
| Impact area (mq): | 20 |
| Size (cm): | 185 x 320 x 215 |

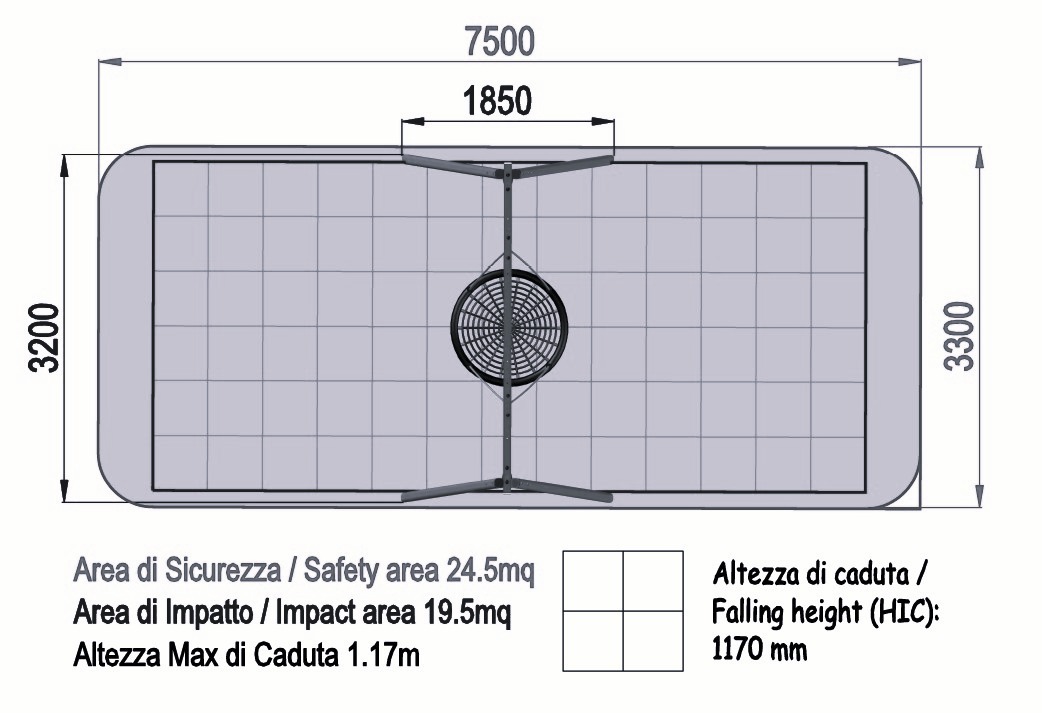

| Safety area (cm): | 750 x 330 |
| Falling height (cm): | 117 |
MATERIALS OF CONSTRUCTION
PLAYING CHARACTERISTICS
