B0300.110ALU
ALTALENA MISTA ALLUMINIO
Mixed swing seat
GALLERY
DESCRIPTION
ALTALENA MISTA ALLUMINIO - Mixed swing seat / B0300.110ALU / Made of EN EV6060 anodized alumium 9x9cm custom mold with rounded edges, minimum thickness 2,7mm
- NR 1 Seat - made by anti-shock rubber with metal reinforcement inside
- NR 1 Cage seat - Cage seat: seat made of anti-shock rubber reinforced with metal, it is made with a reinforced rubber cage for the safety of younger users.
- NR 2 Swing Bracket - Bracket: Bracket to attach the legs and main girder made by steel
- NR 4 Joints - Made of two stainelss steel parts with teflon moving part on the inside
- NR 4 Fantasy Supporting Giders - Fantasy easel supporting giders: Made with aluminium girders (90x90 mm)
- NR 1 Supporting Beam EPAL01-01C1 - Horizontal supporting beam: Made of painted zinc-plated iron.
TECHNICAL CHARACTERISTICS

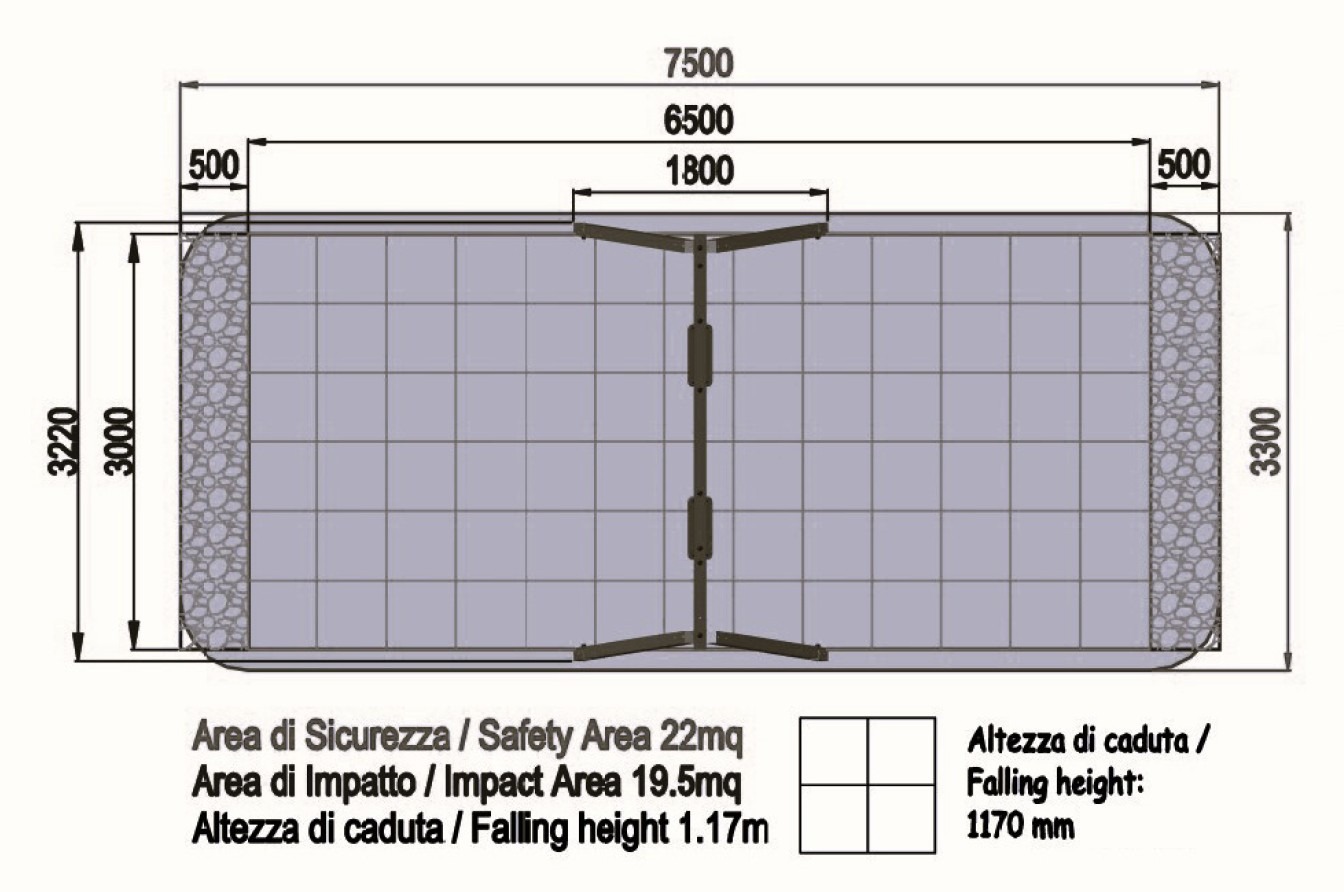

| Impact area (mq): | 19.5 |
| Size (cm): | 320 x 185 x 215 |
| Safety area (cm): | 330 x 750 |
| Falling height (cm): | 117 |
MATERIALS OF CONSTRUCTION
PLAYING CHARACTERISTICS
